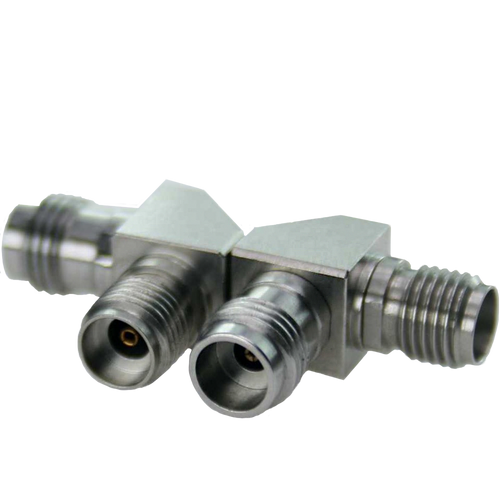

Mitered 2.4mm Male to 2.92mm Female Right Angle Adapter - 40 GHz

$252.00
Part #:
HAD-24P-29J-MF-RA-01
Brand:
HASCO Components
Weight:
1.00 Ounces
Shipping:
Calculated at checkout

Out of stock - Call for availability

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 - 99

Buy 100 or above

PRICE

$252.00

$244.44

$237.11

$229.99

$223.09

ADD TO WISHLIST
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
PRODUCT DETAILS
HASCO Part Number: HAD-24P-29J-MF-RA-01


Features
• RoHs Compliant
• Thermal Shock: MIL-STD-202, Method 107, Cond. B
• Moisture Resitance: MIL-STD-202, Method 206
• Corrosion: MIL-STD-202, Method 101, Cond. B


The HASCO HAD-24P-29J-MF-RA-01 is a 2.4mm Male to 2.92mm Female between series adapter manufactured by HASCO Components. This between series 2.4mm to 2.92mm coax adapter will operate up to 40 GHz. Adapters that have a male to female or plug to jack configuration are known as “connector savers.” Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. HASCO Cage Code: 0T8L4

pdf newicon image« Datasheet

Electrical

Item

Specification

 Impedence

 50 Ohms

 Frequency Range

 DC to 40 GHz

 VSWR

 1.15:1 Max

 Insertion Loss

 ≦0.06 x √f(GHz) dB

 Insulation Resistance

 ≧5000MΩ

 Dielectric Withstanding Voltage

 500 V rms

 Working Voltage

 150 V rms

 RF Leakage

 ≧100 dB to 1 GHz



Mechanical

Item

Specification

 Coupling Nut Torque

 7.08 to 9.74 in-lbs (2.4mm), 11.47 in-lbs (2.92mm)

 Coupling Proof Torque

 15 in-lbs (2.4mm), 15 in-lbs (2.92mm)

 Contact Captivation-Axial

 ≧4.5 lbs (2.4mm), ≧4.9 lbs (2.92mm)

 Durability

 ≧500 cycles (2.4mm), ≧500 cycles (2.92mm)



Environmental

Item

Specification

 Temperature Range

 -55°C to 105°C



Material

Item

Specification

 Body & Nut

 Passivated Stainless Steel

 Contact

 Gold plated BeCu

 Dielectric

 PPO

 Gasket

 Silicone

 Retainer Ring

 Tin-Zinc-Copper Alloy plated BeCu





WARRANTY INFORMATION
*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242
Part No: HAD-24P-29J-MF-RA-01
Mitered 2.4mm Male to 2.92mm Female Right Angle Adapter - 40 GHz

HASCO Part Number: HAD-24P-29J-MF-RA-01


Features
• RoHs Compliant
• Thermal Shock: MIL-STD-202, Method 107, Cond. B
• Moisture Resitance: MIL-STD-202, Method 206
• Corrosion: MIL-STD-202, Method 101, Cond. B


The HASCO HAD-24P-29J-MF-RA-01 is a 2.4mm Male to 2.92mm Female between series adapter manufactured by HASCO Components. This between series 2.4mm to 2.92mm coax adapter will operate up to 40 GHz. Adapters that have a male to female or plug to jack configuration are known as “connector savers.” Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. HASCO Cage Code: 0T8L4

pdf newicon image« Datasheet

Electrical

Item

Specification

 Impedence

 50 Ohms

 Frequency Range

 DC to 40 GHz

 VSWR

 1.15:1 Max

 Insertion Loss

 ≦0.06 x √f(GHz) dB

 Insulation Resistance

 ≧5000MΩ

 Dielectric Withstanding Voltage

 500 V rms

 Working Voltage

 150 V rms

 RF Leakage

 ≧100 dB to 1 GHz



Mechanical

Item

Specification

 Coupling Nut Torque

 7.08 to 9.74 in-lbs (2.4mm), 11.47 in-lbs (2.92mm)

 Coupling Proof Torque

 15 in-lbs (2.4mm), 15 in-lbs (2.92mm)

 Contact Captivation-Axial

 ≧4.5 lbs (2.4mm), ≧4.9 lbs (2.92mm)

 Durability

 ≧500 cycles (2.4mm), ≧500 cycles (2.92mm)



Environmental

Item

Specification

 Temperature Range

 -55°C to 105°C



Material

Item

Specification

 Body & Nut

 Passivated Stainless Steel

 Contact

 Gold plated BeCu

 Dielectric

 PPO

 Gasket

 Silicone

 Retainer Ring

 Tin-Zinc-Copper Alloy plated BeCu





Part No: HAD-24P-29J-MF-RA-01
LTR
DESCRIPTION
DATE
APPR
THIS DRAWING IS A CONTROLLED DOCUMENT
DRAWN BY:
CHECKED BY:
APPROVED BY:
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HASCO COMPONENTS AND SHALL NOT BE REPRODUCED, COPIED NOR USED - IN WHOLE OR IN PART - AS THE BASIS FOR THE MANUFACTURE OR SALE OF OTHER ITEMS WITHOUT THE EXPRESS, RITTEN PERMISSION OF HASCO COMPONENTS.

MATERIALS:

SEE DATA SHEET

CAGE CODE:

HAD-24P-29J-MF-RA-01

MATERIALS:

SEE DATA SHEET

SCALE:

NS

SIZE:

REV:
