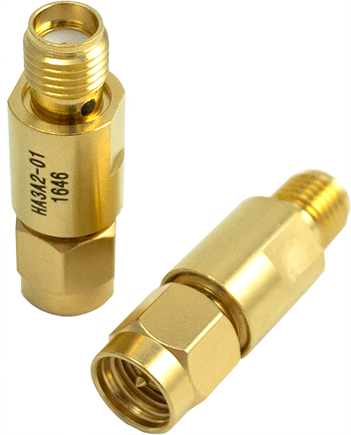

Fixed Attenuator with SMA Male to SMA Female Connectors - 15 dB
P/N: HA3A2-15
Brand: HASCO Components
The HA3A2-15 is a SMA Male to Female Attenuator manufactured by HASCO. This type of Attenuator is bidirectional. Attenuators like this HA3A2-15 are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 3 GHz and is rated for 2 Watts. The attenuation value is 15 dB.

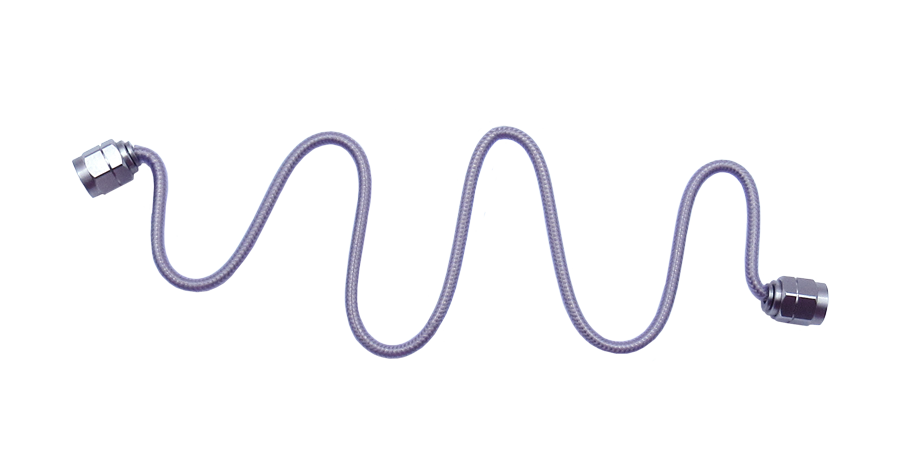

Littlebend HLB098 Ultra Flexible RF Cable with 2.4mm Male Connectors - 10 inch
P/N: HLB098-24P-24P-10
Brand: Littlebend
The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20” minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 50 GHz flexible cables are terminated with high performance 2.4mm straight connectors.
W-Band Medium Power Amplifier DIE, 15 dB Gain - 92 to 100 GHz
P/N: gAPZ0100A-2GP
Brand: gotMIC
The gAPZ0100A is a bare die GaAs pHEMT four-stage power amplifier MMIC optimized for 92-100 GHz from gotMIC. It is ideal for medium power W-band radar applications and long-range spectral efficient point-to-point communication. The MMIC thickness is 50 um. A dxf file is also available on request for use with CAD tools. This MMIC can be both solder mounted and silver epoxy attached to an electrically grounded plane with excellent thermal properties.

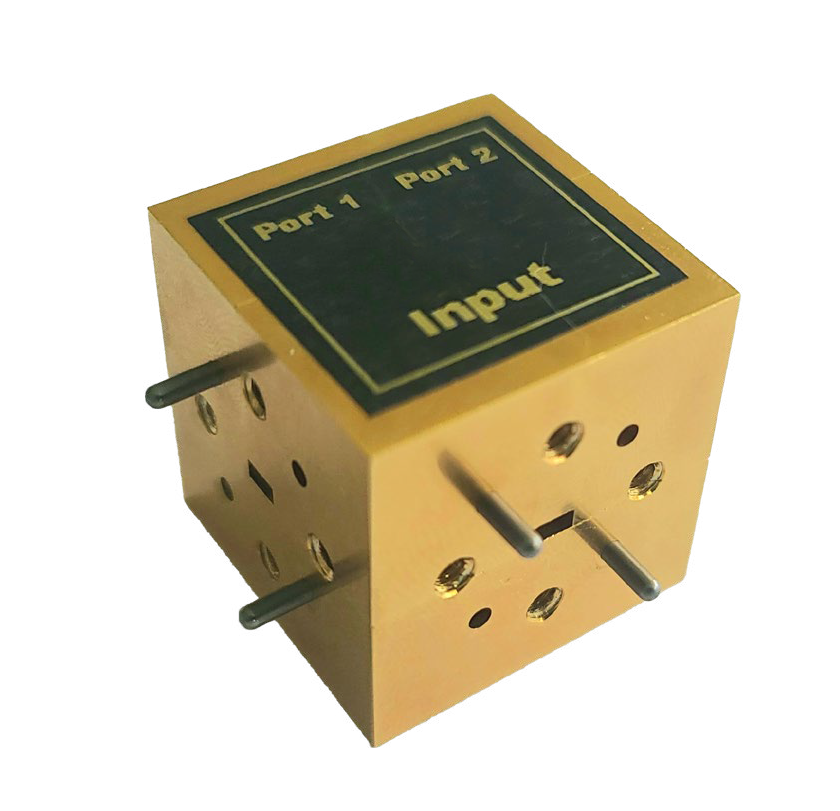

The HASCO HWMT10-9030T-ER is a W-band Magic Tee that covers the frequency range of 75 to 105 GHz. A Waveguide Magic Tee is a four-port hybrid coupler and/or power divider with two collinear arms, an E-plane (difference) arm and an H-plane (sum) arm. The Magic Tee offers a 0.3 dB nominal insertion loss and high isolation between the two collinear arms and between the sum and difference arms. All waveguide ports have standard WR-10
waveguides with UG-387/U-M flanges.
Launch Pin-Tab and Dielectric to Microstrip Pin Dia. 0.009"
P/N: 1490-12G
Brand: Southwest Microwave
The 1490-12G is a launch pin/tab and dielectric manufactured by Southwest Microwave. This pin/tab and dielectric has a 0.009" Pin Diameter, 0.160" Pin Length, 0.015" Tab Length, 0.029" Dielectric Diameter, and 0.125" Dielectric Length.
When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.
HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.
