Weekly Showcase - July 12, 2024

Weekly Showcase - July 12, 2024

Posted by HASCO Components on 12th Jul 2024


FedEx 2-Day Shipping Rates for Qualifying Orders

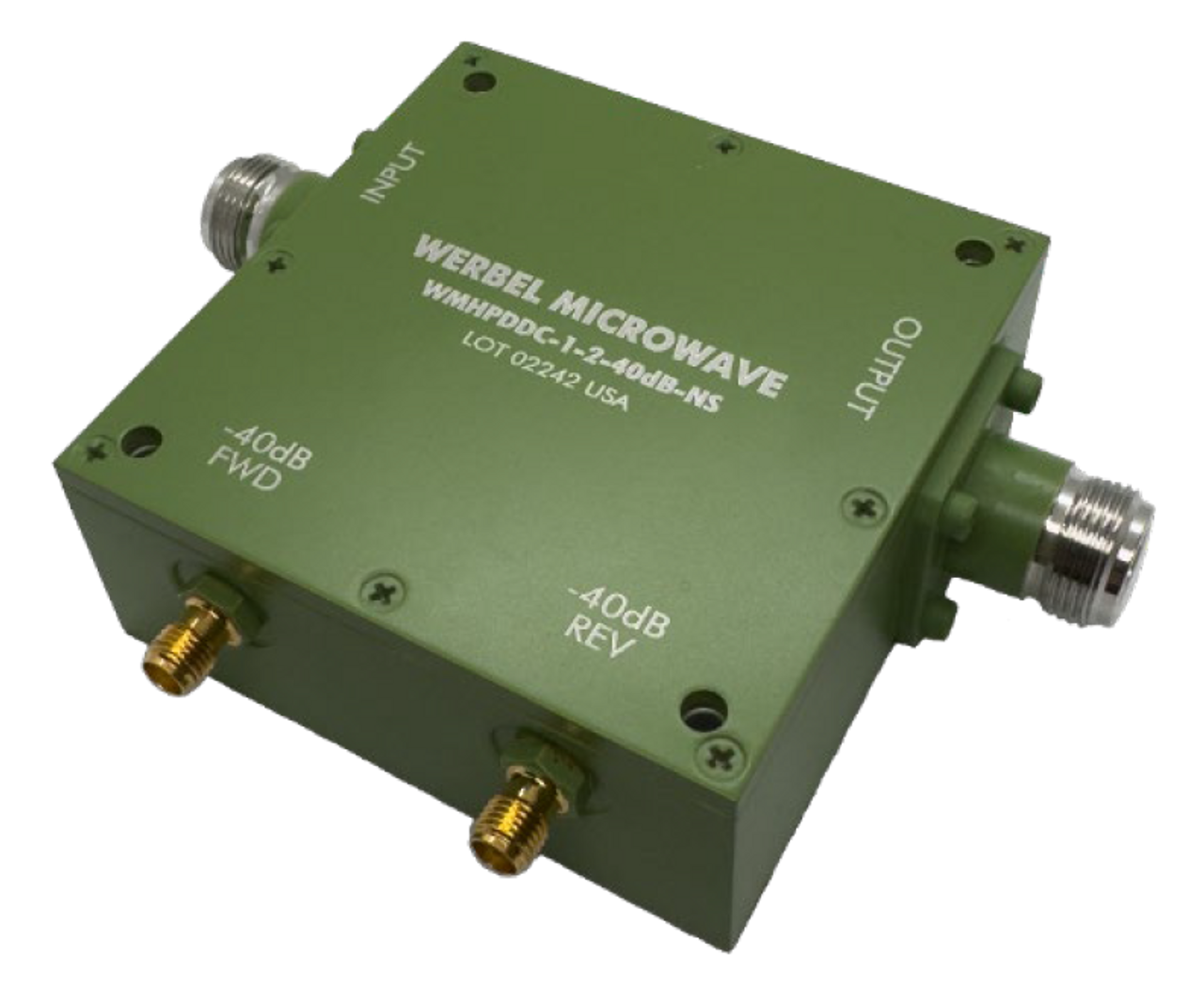

Hight Power Dual Directional Coupler with Type N Female and SMA Female Connectors - 1 to 2 GHz, 40 dB

P/N: WMHPDDC-1-2-40dB-NS

Brand: Werbel Microwave

The WMHPDDC-1-2-40dB-NS is a Type N/SMA female High Power Dual Directional Coupler with a wide frequency range spanning from 1 GHz to 2 GHz by Werbel Microwave. Features 40 dB coupling factor in both forward and reverse directionals, high directivity, and excellent return loss performance. Designed, assembled, and tested in USA with lead free solder making it RoHS compliant. The forward and reverse coupled outputs are independently isolated, which means that a mismatch on one coupled port will not affect the other. This is a useful characteristic in amplifier power monitoring applications where a good VSWR cannot always be guaranteed at the detector input.

Product Page

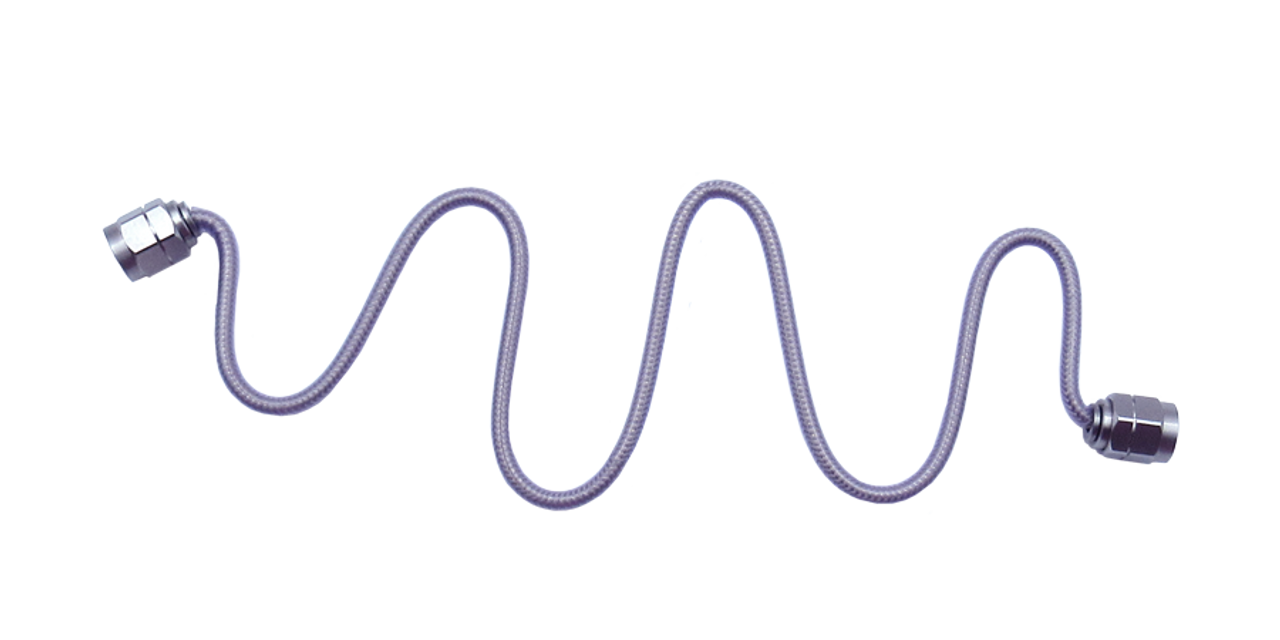

Littlebend HLB098 Ultra Flexible RF Cable with 2.4mm Male Connectors - 12 inch

P/N: HLB098-24P-24P-12

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20” minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 50GHz flexible cables are terminated with high performance 2.4mm straight connectors. Also available in SMA, 2.92mm, SMP and SMPM connectors. Additional configurations available by special order.

Product Page

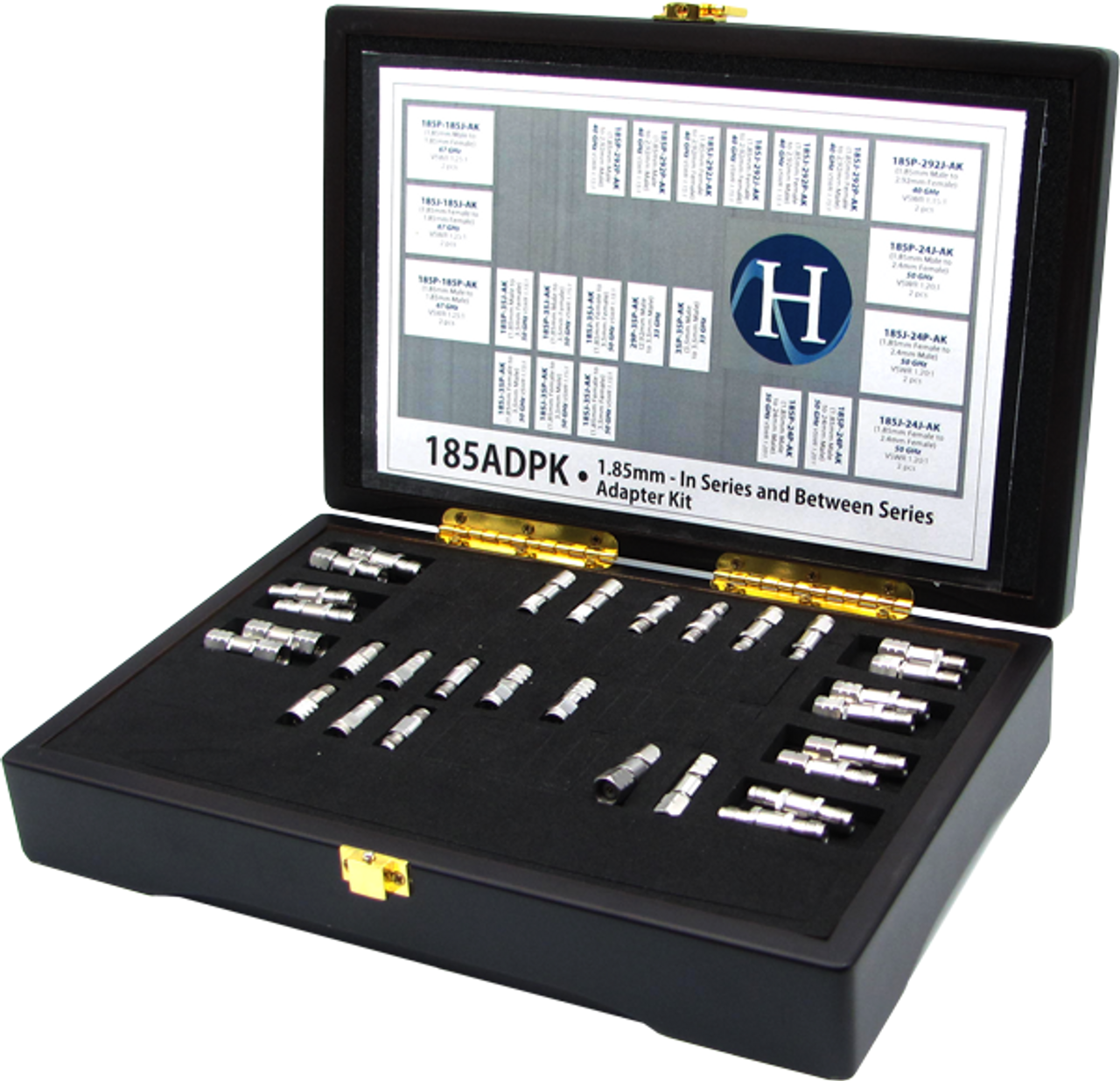

1.85mm Adapter Kit

P/N: 185ADPK

Brand: HASCO Components

The 185ADPK contains 30 Adapters, featuring In-Series and Between-Series high-performance adapters.  The 1.85mm adapter kit offers a quick solution for your test bench needs with  excellent performance at a budgetable cost.

Product Page


HASCO RF MARKETING PARTNER

HASCO RF Marketing Partner

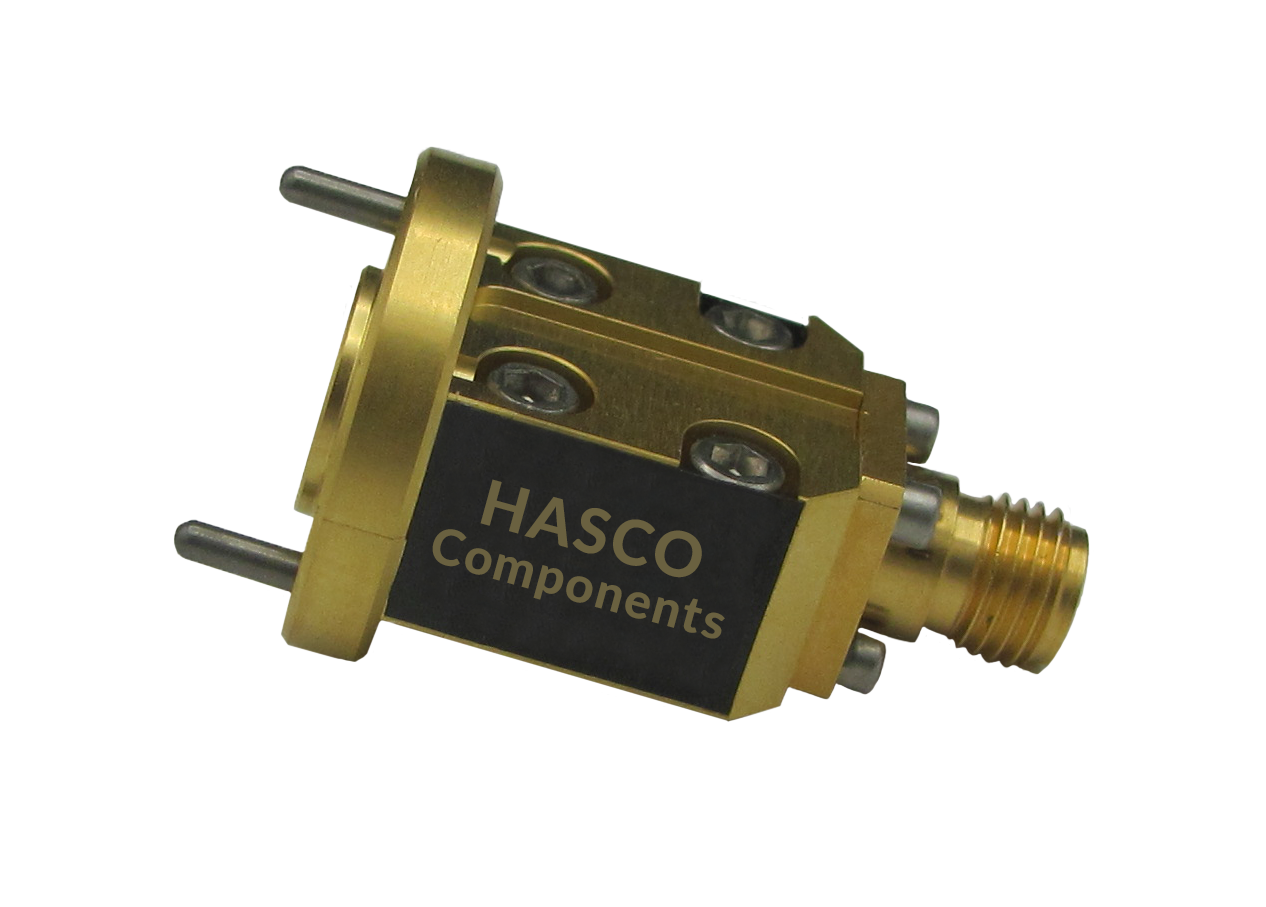

WR-28 Waveguide Detector with SMA Female Connector, Ka-Band - 26.5 to 40 GHz

P/N: HWPSD28-2640-S2

Brand: HASCO Components

The HASCO HWPSD28-2640-S2 is an SMA Female Ka-Band waveguide detector from HASCO. This waveguide detector will operate from 26.5 GHz to 40 GHz. This detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance.

Product Page


2.92mm Female End Launch Connector, Standard Block, Thread-In

P/N: 1092-04A-12

Brand: Southwest Microwave

The 1092-04A-12 is an End Launch Connector manufactured by Southwest Microwave. The 1092-04A-12 is a 2.92mm Female coax connector with transition to PCB that operates up to 40 GHz. End Launch Connectors help reduce losses caused by the transition from PCB to Coax Connector and maintain a Low VSWR and RF Leakage. This End Launch is a Low Profile, .500 Wide Narrow Block design with 2.92mm Connector available for Microstrip or Coplanar printed circuit boards.

Product Page


HASCO's Quality Standard


When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.



HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.

• Let us know how we can assist you •






Request a Quote
