Posted by HASCO Components on 11th Dec 2023


Greetings!

We are happy to feature Waveguide to Coax Adapters by HASCO. Our Waveguide to coax adapters enable the connection of waveguide-based components, such as antennas, filters, or amplifiers, to coaxial cables commonly used in communication systems. HASCO waveguide to coaxial adapters provide a convenient way to bridge the gap between different transmission line technologies. By using HASCO waveguide to coax adapters, it becomes possible to connect waveguide-based devices to coaxial systems, allowing for efficient signal transmission and integration into existing setups. HASCO waveguide to coax adapters play a crucial role in enabling compatibility and versatility between different transmission line types. They are designed to provide enhanced RF performance, resulting in characteristics like low insertion loss and low VSWR. When selecting a waveguide to coaxial adapter, choosing the correct connector type, flange materials, flange types and flange profiles is essential to achieving your desired RF performance.

HASCO offers a wide range of Waveguide to Coax adapters in waveguide sizes from WR-430 up to WR-10. HASCO waveguides to coax adapters are available from stock with standard coaxial connector configurations. SMA, TNC, Type N, 2.92mm, 1.85mm and 1.0mm. Custom configurations are available upon request. Our waveguide adapters are RoHS compliant.

Be prepared for installation with a HASCO Torque Wrench!

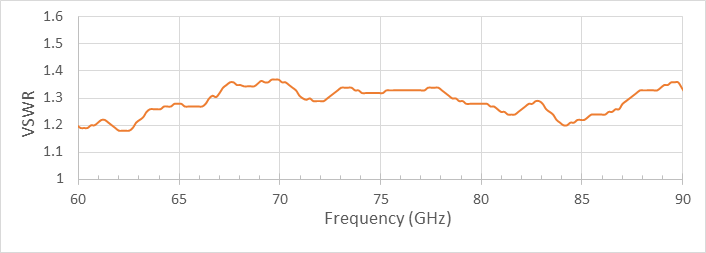

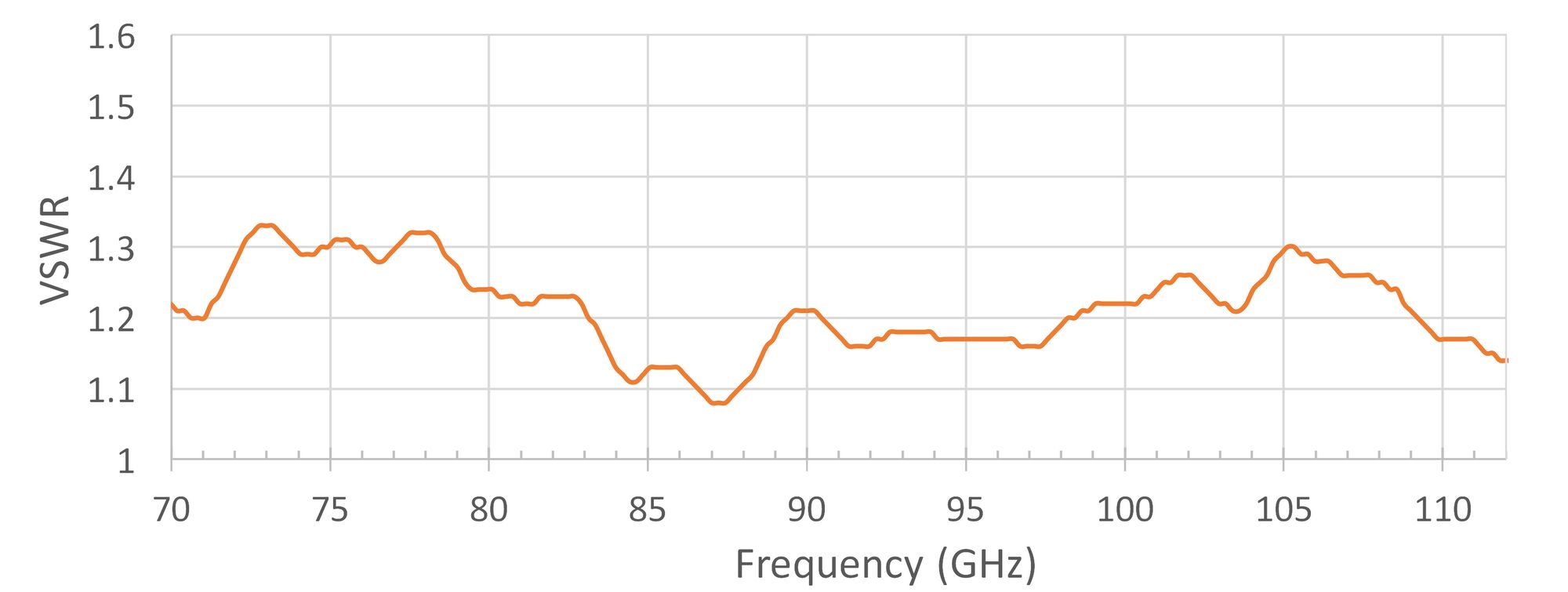

Performance

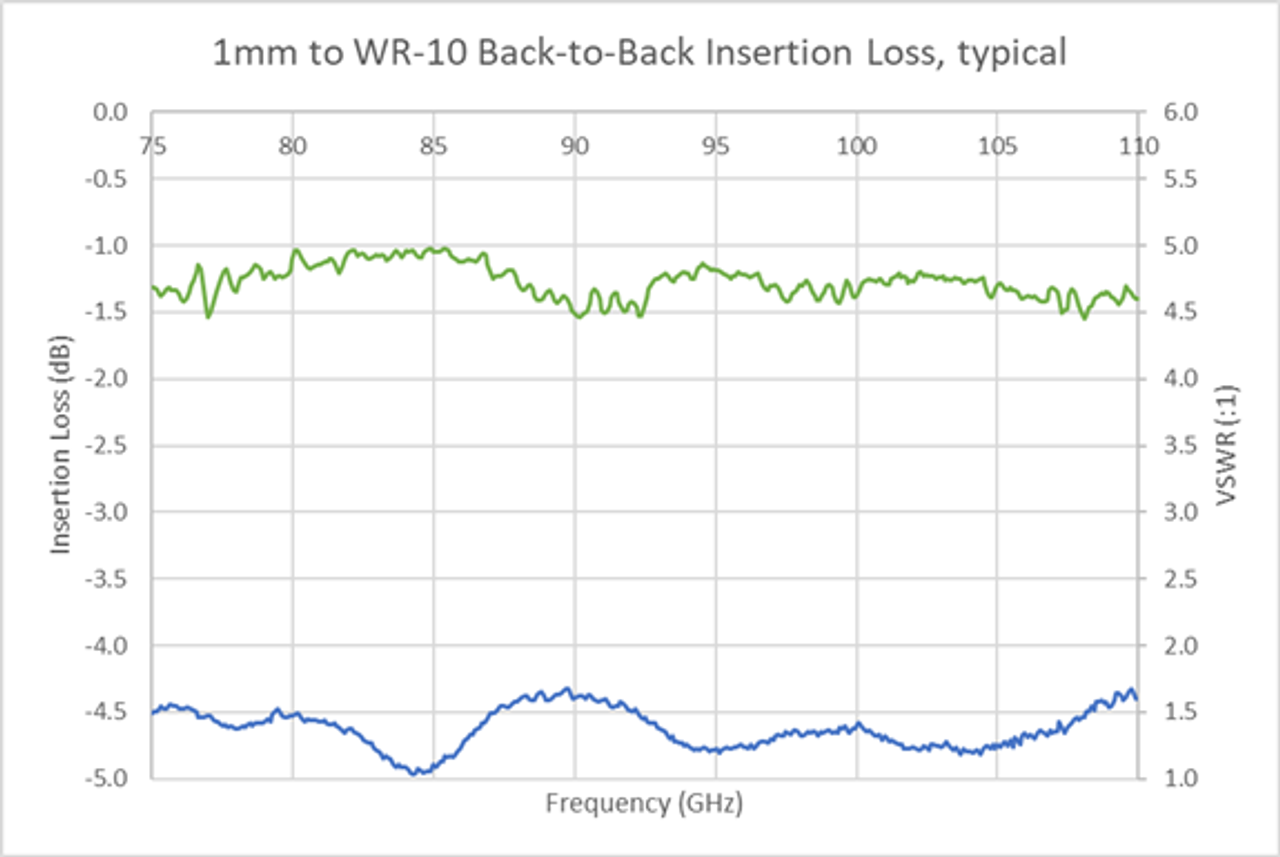

WR-10 to 1.0mm


WR-15 to 1.0mm



Featured Products



Waveguide to Coax Adapters

Click to View

1.0mm Connector

WR-10: 75 to 110 GHz

WR-12: 60 to 90 GHz

WR-15: 50 to 75 GHz

1.85mm Connector

WR-15: 50 to 70 GHz

2.92mm Connector

WR-28: 26.5 to 40 GHz

WR-34: 22 to 34 GHz

SMA Connector

WR-42: 18 to 26.5 GHz

WR-51: 15 to 22 GHz

WR-62: 12 to 18 GHz

WR-75: 10 to 15 GHz

WR-90: 8.2 to 12.4 GHz

WR-112: 7.05 to 10 GHz

Type N Connector

WR-90: 8.2 to 12.4 GHz

WR-159: 4.9 to 7.05 GHz

WR-187: 3.95 to 5.85 GHz

WR-229: 3.3 to 4.9 GHz

WR-284: 2.6 to 3.95 GHz

WR-340: 2.1 to 3 GHz

WR-430: 1.7 to 2.6 GHz



Our Waveguide to Coax Adapters are in stock, and ready to ship daily.
