Posted by HASCO Components on 14th Dec 2023


We are happy to introduce our line of Standard Gain Horn Antennas. The HASCO Standard Gain Waveguide Horn Antennas, boasting an impressive 23dBi gain, are meticulously manufactured with precision electroforming over a mandrel and further gold-plated to ensure optimal performance. Their pyramidal shape with a rectangular aperture allows for efficient radiation and reception of electromagnetic signals.


Applications

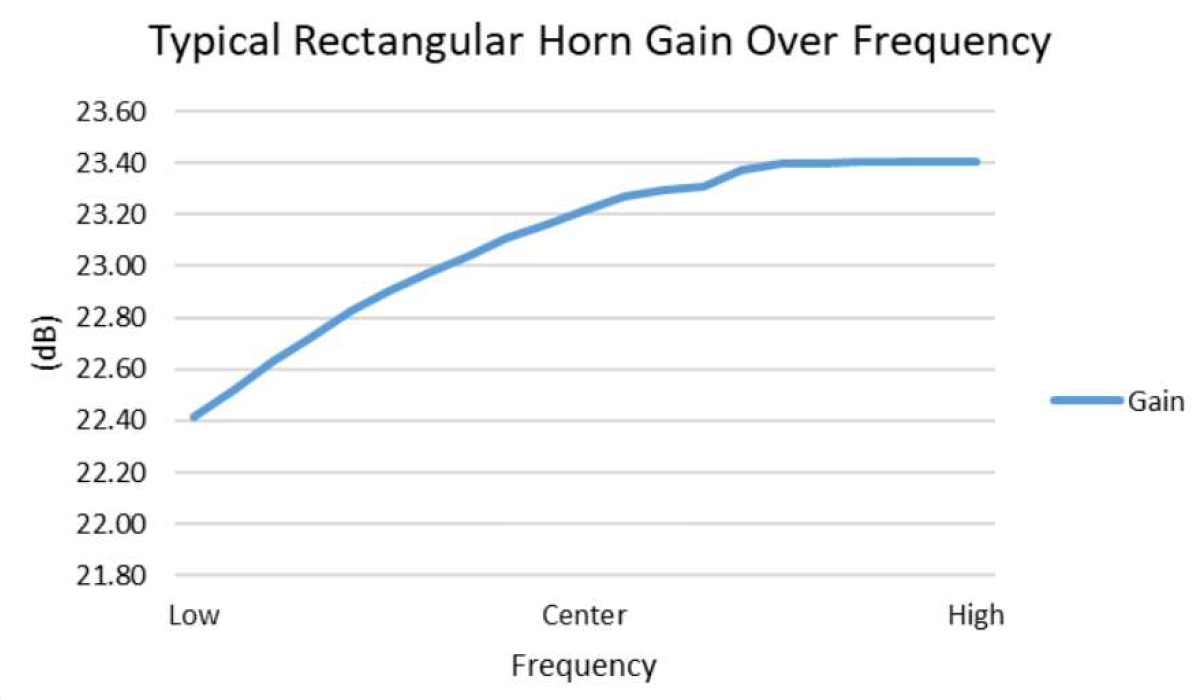

These high-gain horn antennas find applications in a wide array of industries, including wireless communications, radar systems, satellite communications, and antenna measurements. Due to their reliable and consistent gain characteristics over a broad frequency range, they are ideal for antenna range calibration and general-purpose system setups.


Our Gain Horns function as a calibration standard or as reference for antenna gain measurement. They are also used as feed horns for lens and reflector antennas or stand-alone antennas in subsystems.

HASCO's Quality Standard

When ordering these antennas from HASCO, customers can expect several significant benefits. Firstly, HASCO is renowned for its commitment to producing high-quality products. The antennas are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.

Secondly, HASCO offers a range of customization options, allowing customers to select the antenna specifications that precisely match their specific needs. This flexibility ensures that each customer receives an antenna tailored to their unique requirements, enhancing the overall system performance.

Lastly, HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right antenna for their applications, while prompt and reliable delivery ensures customers receive their orders on time.



Featured Products

Standard Gain Horn Antennas

 Input

WR-10

WR-12

WR-15

WR-19

WR-22

WR-28

WR-42

Frequency Range

 75 GHz to 110 GHz

 60 GHz to 90 GHz

 50 GHz to 75 GHz

 40 GHz to 60 GHz

 33 GHz to 50 GHz

 26.5 GHz to 40 GHz

18 GHz to 26.5 GHz

Flange

UG-387/U-M

UG-387/U

UG-385/U

UG-383/U-M

UG-383/U-M

UG-599/U

UG-599/U



Specifications

- Vertical Polarity
- Gain: 23 dBi



Our Waveguide Gain Horns are in stock, and ready to ship daily.
