Posted by HASCO Components on 11th Dec 2023


We are happy to feature Waveguide Amplifiers by HASCO. Our Waveguide Amplifiers are available in Broadband Low Noise and Power configurations. The HASCO millimeter waveguide amplifiers are specialized amplifiers designed to operate in the millimeter-wave frequency range. They are manufactured with internal reverse bias protection, which ensures reliability. The bias operates with 7 to 12 VDC. The Low Noise Amplifiers (LNA) have a full band noise figure of 4 dB to 4.5 dB.

Our Amplifiers offer excellent full band LNA and Power for transmitters, Up-Converters, Radars, and general lab use. They provide wide bandwidth, allowing for efficient transmission and amplification of high-frequency signals. They also exhibit low noise figures to improve signal-to-noise ratios for accurate detection, and high gain to amplify weak millimeter-wave signals to suitable levels. As well as 5G wireless communication, automotive radar systems, high-resolution imaging, radio astronomy, and remote sensing. They enable faster data transmission, improved spatial resolution, and enhanced sensing capabilities.

Overall, the use of the HASCO Waveguide Amplifiers enhances signal quality, extends range, and improves system performance in millimeter-wave applications.



Performance

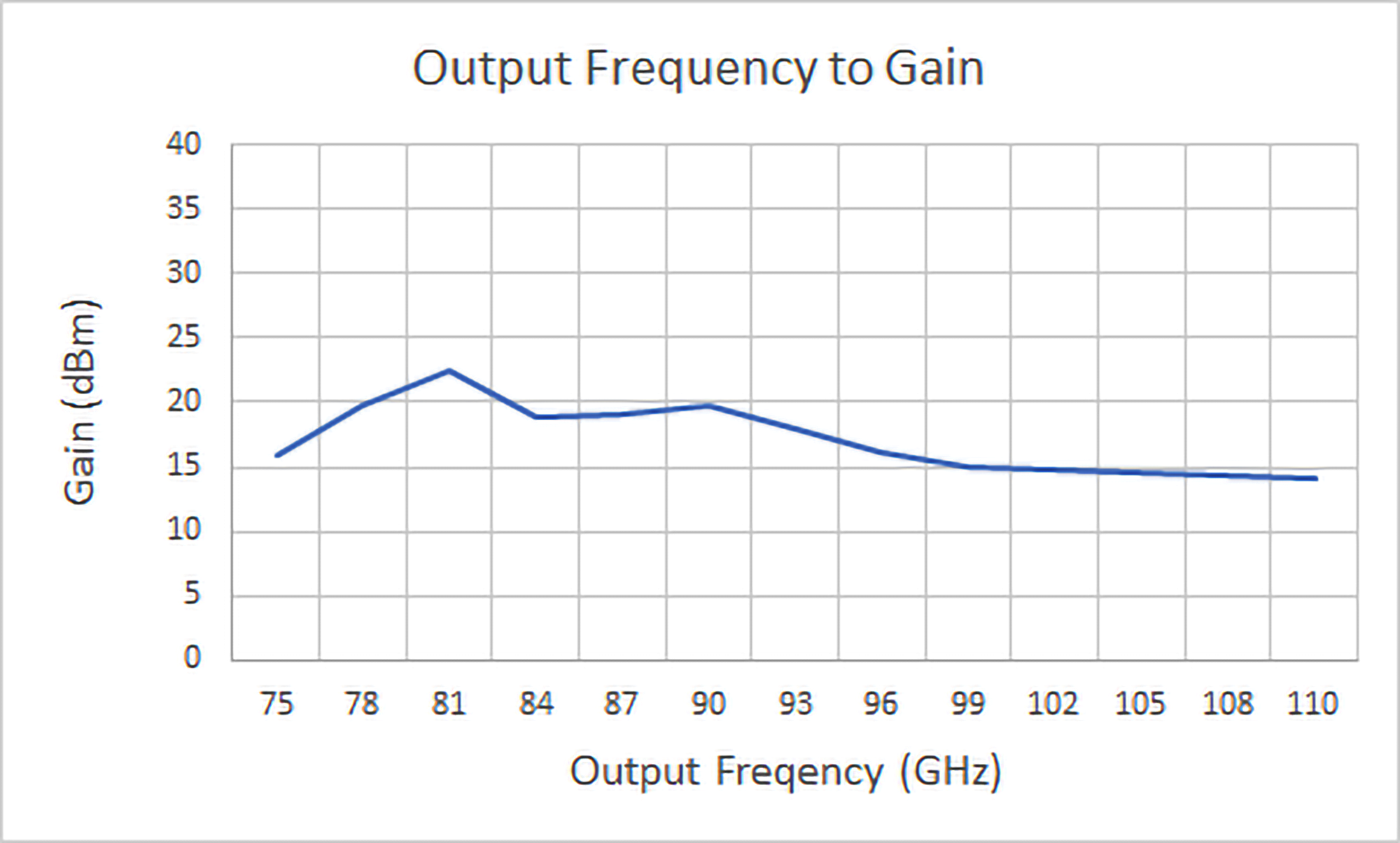

WR-10 Low Noise Amplifier

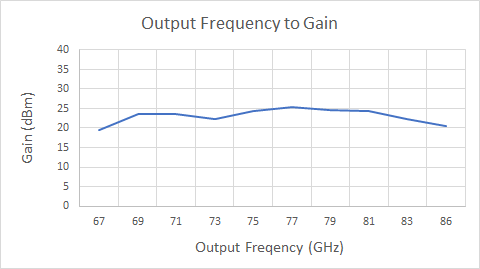

WR-12 Low Noise Amplifier

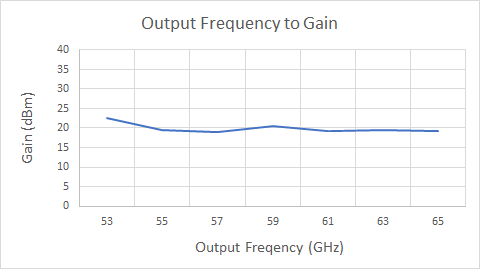

WR-15 Low Noise Amplifier

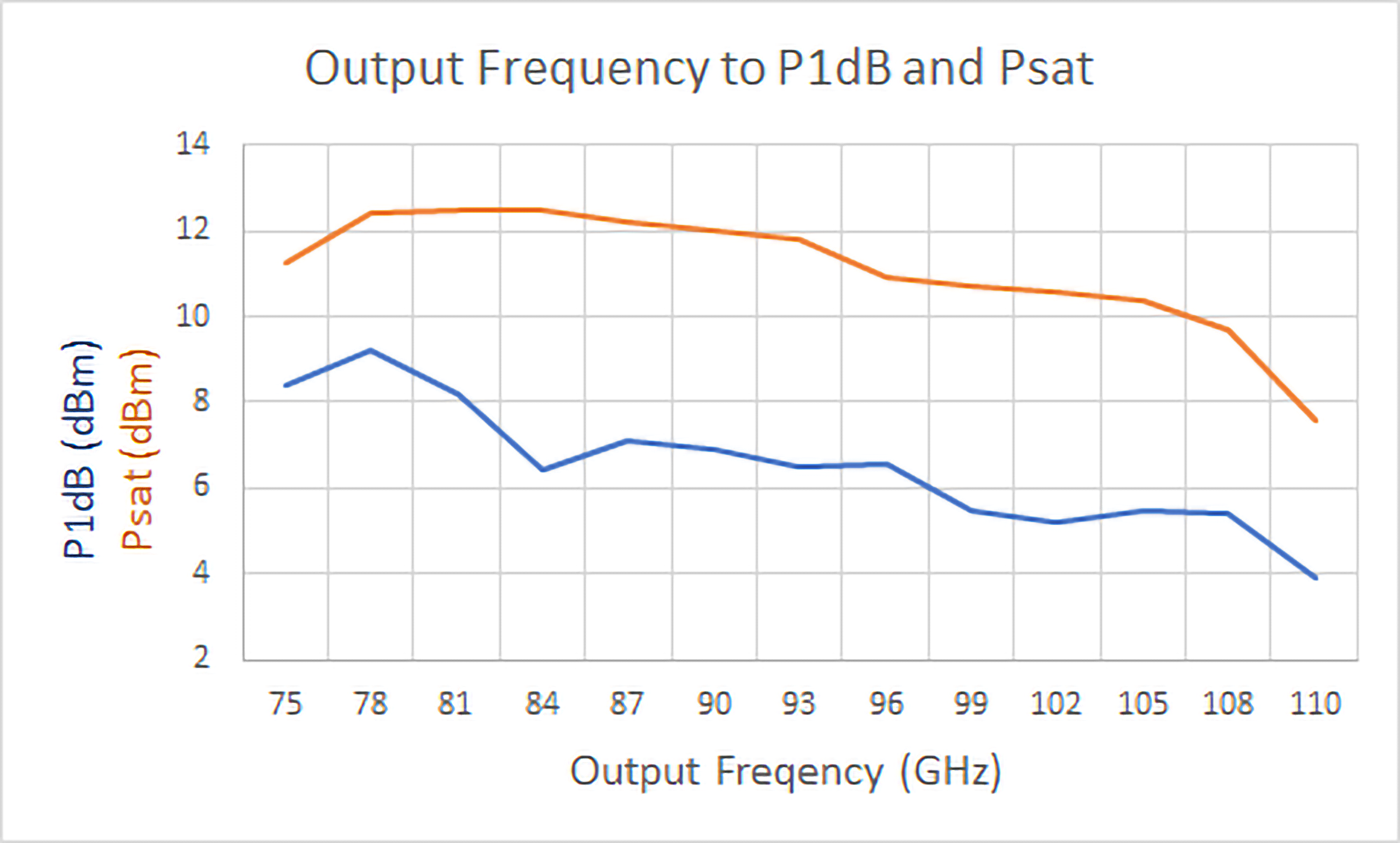

WR-10 Power Amplifier

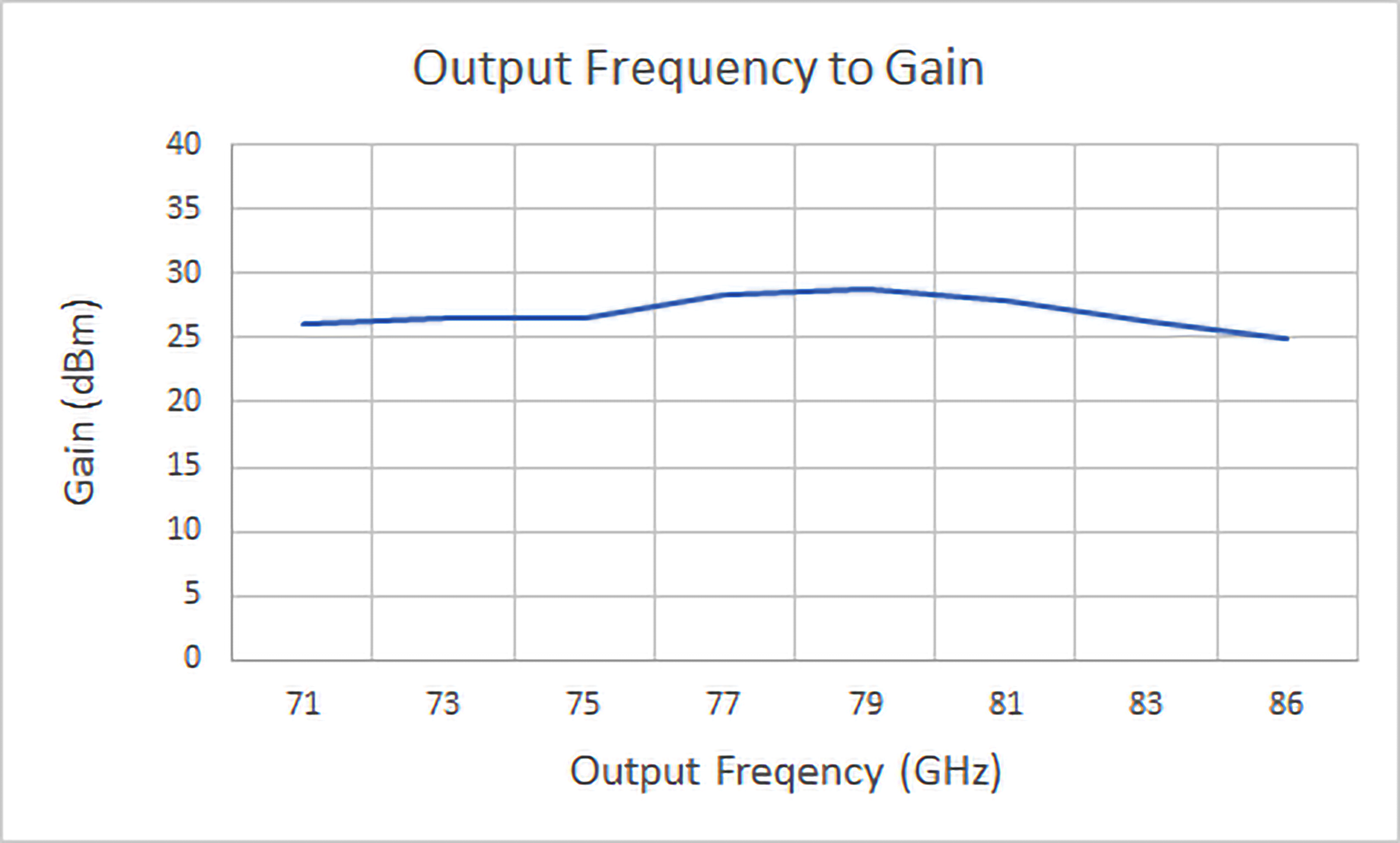

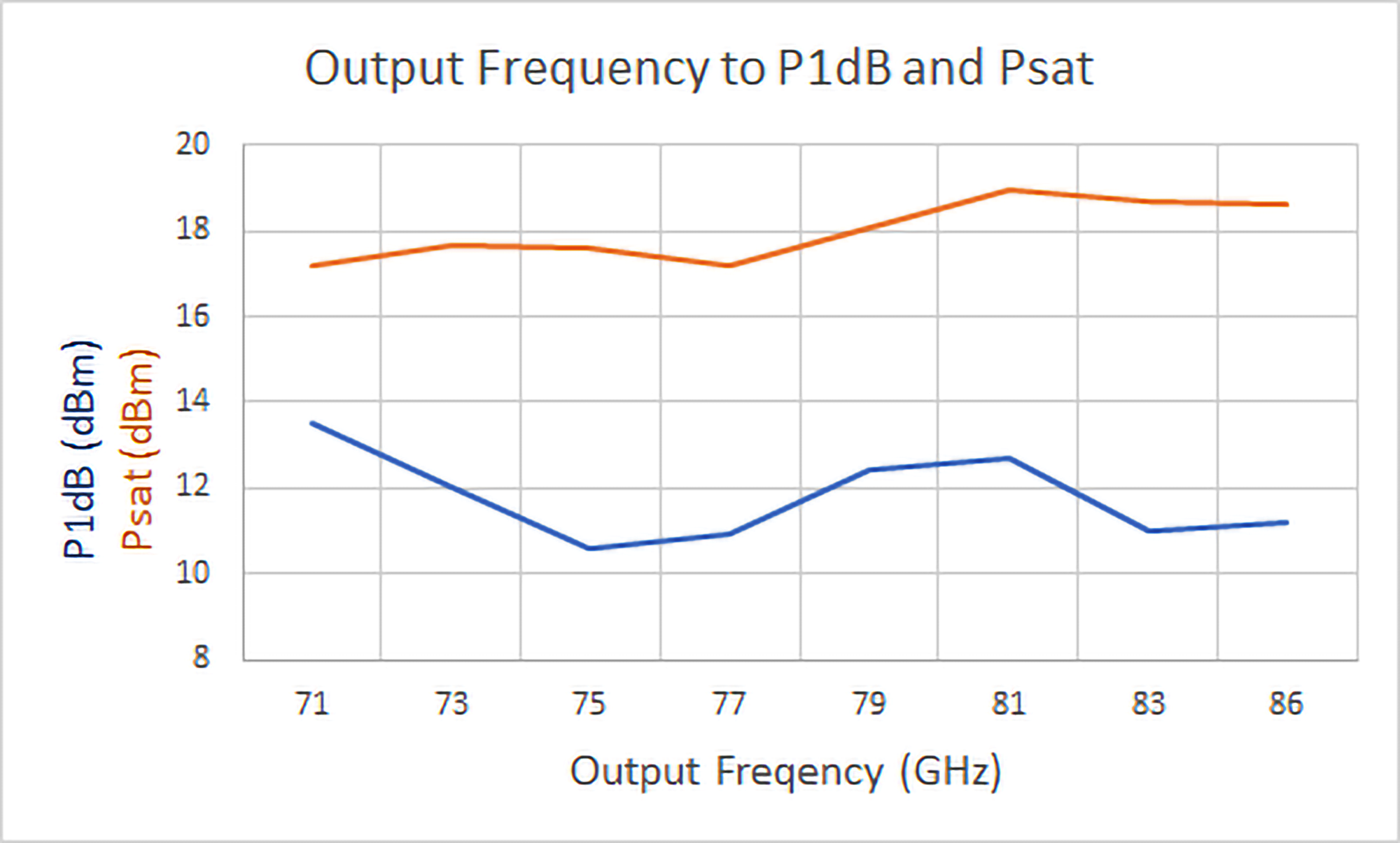

WR-12 Power Amplifier

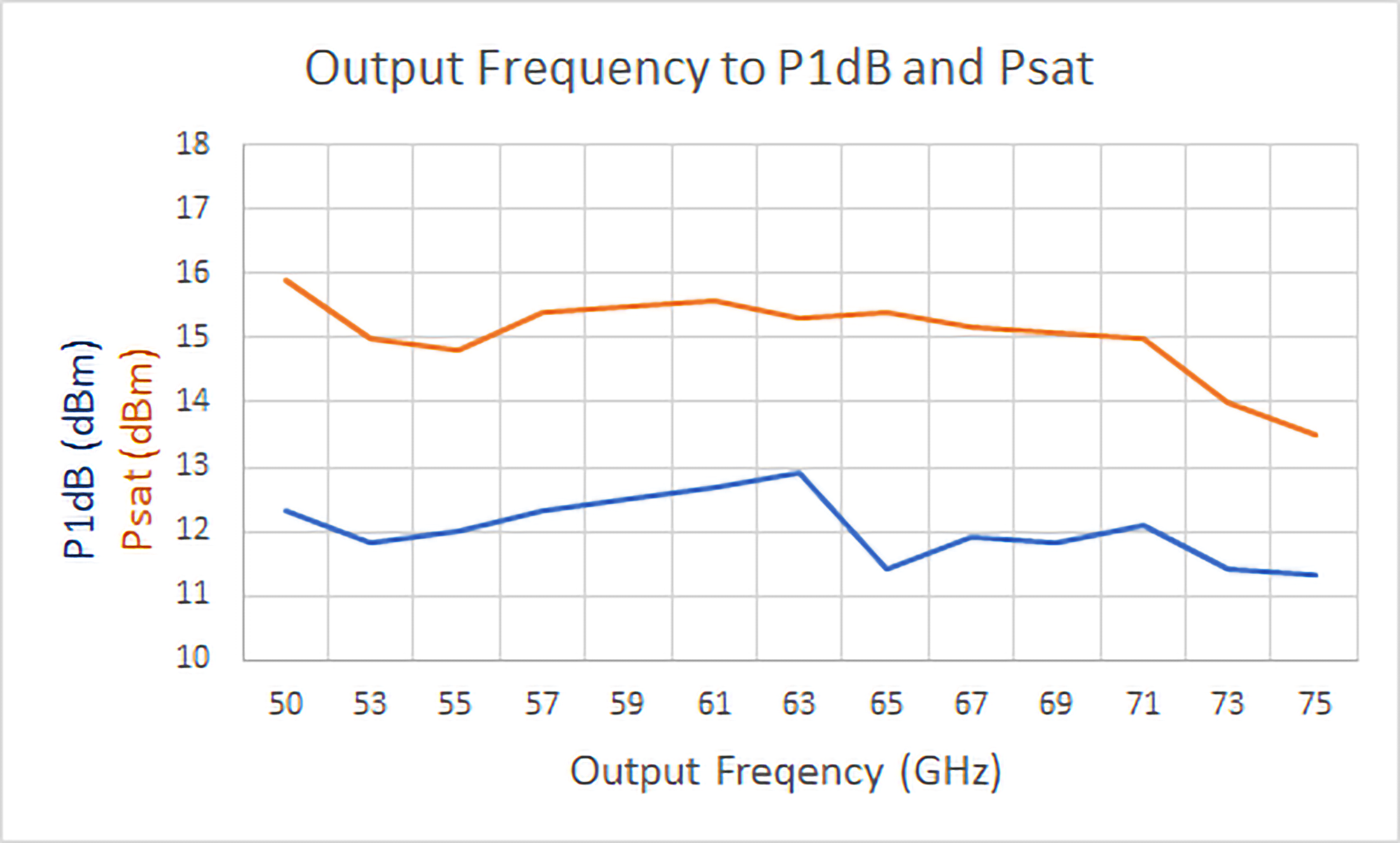

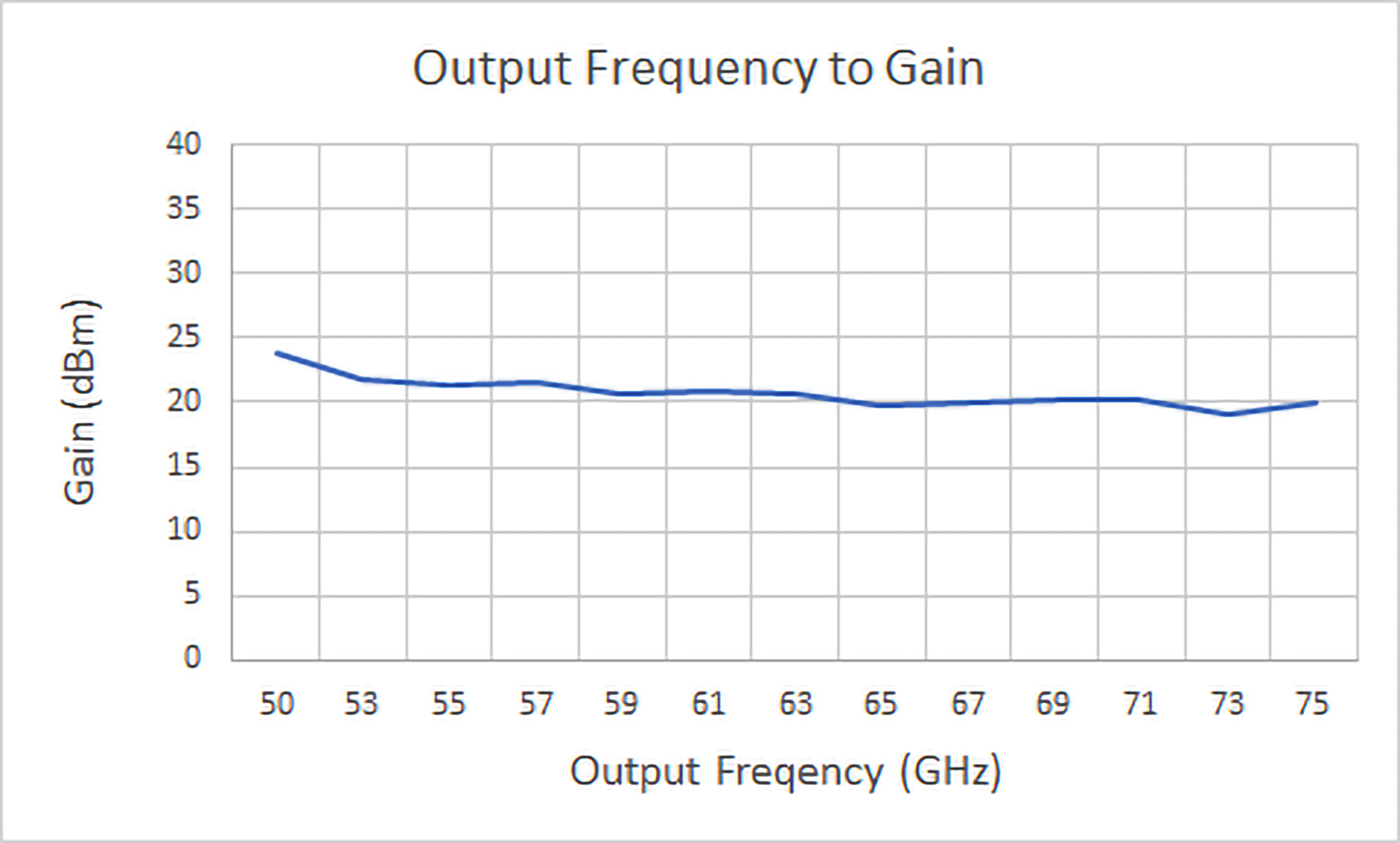

WR-15 Power Amplifier



Featured Products

Low Noise Amplifier

WR-10: 75 to 110 GHz

WR-12: 67 to 90 GHz

WR-15: 53 to 65 GHz

Power Amplifier

WR-10: 75 to 110 GHz

WR-12: 71 to 86 GHz

WR-15: 50 to 75 GHz


Our Waveguide Amplifiers are in stock, and ready to ship daily.
