Posted by HASCO Components on 11th Dec 2023


We are happy to introduce the newest member of the Littlebend™ family. Our classic Littlebend Cable is now available with a 0.055" cable and 1.0mm connectors. The HLB055 and HLB055A Little-110 line of Ultra-Flexible cables further expands the HASCO cable offering to provide customers with a more flexible cable option that supports the need for increased movement during production applications.

The Little-110 Ultra-Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.12” minimum bend radius for non-armored cables and a 0.79" minimum bend radius for armored cables.

The Littlebend Ultra-Flexible RF cable series is RoHS Compliant.

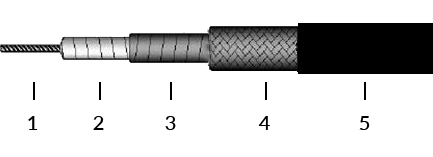

Construction & Performance




1. Center Conductor

Silver Plated Solid Copper

2. Dielectric

Foamed PTFE

3. Inner Shield

Silver plated Copper Strip

4. Outer Shield

Silver plated Copper Braid

5. Jacket

FEP

6. Armor (HLB055A)

Passivated Stainless Steel





Featured Products



HLB055 - 1.0mm Female to 1.0mm Female

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz<

- Lengths from 4" to 24"


HLB055A - 1.0mm Female to 1.0mm Female Armored

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz

- Stainless Steel Armor

- Lengths from 4" to 24"

HLB055 - 1.0mm Male to 1.0mm Female

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz

- Lengths from 4" to 24"


HLB055A - 1.0mm Male to 1.0mm Female Armored

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz

- Stainless Steel Armor

- Lengths from 4" to 24"

HLB055 - 1.0mm Male to 1.0mm Male

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz

- Lengths from 4" to 24"


HLB055A - 1.0mm Male to 1.0mm Male Armored

- 110 GHz Max Frequency

- VSWR: 1.50:1 @ 110 GHz

- Stainless Steel Armor

- Lengths from 4" to 24"



Our Little-110 Series Cables are in stock, and ready to ship daily.
