Description
INMET P/N 8535

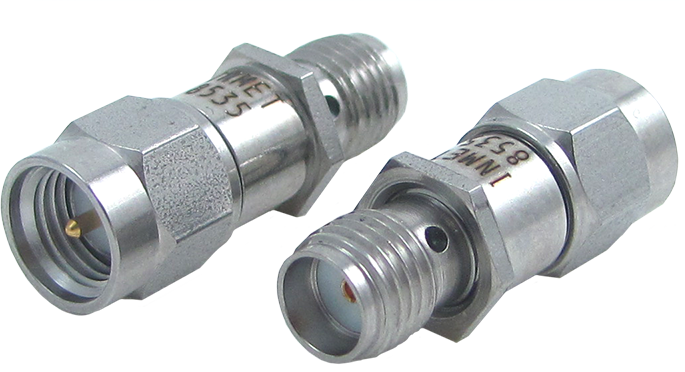

INMET 8535 - DC BLOCK - Inner Only - SMA Male to SMA Female - 7 KHz to 23 GHz
(NOTE: Special Pricing - FIRE Sale Item.) - No drawing available - In original packaging. Non-Cancellable/Non-Returnable
Electrical
• Frequency Range: 7 KHz to 23 GHz
• VSWR
| 7 KHz - 23 GHz: | 1.35:1 |
• Insertion Loss
| 100 KHz - 12.4 GHz: | 0.50 dB |
| 12.4 - 23 GHz: | 0.75 dB |
• Impedence: 50 Ohms
• Voltage: 100 Volts
Material
• Connector Body & Coupling Nut: Passivated Stainless Steel
• Center Contact: Gold Plated Beryllium Copper
Environmental Data
• Temperature Range: -65°C - 125°C
- Connector 1 Gender:
- Male
- Connector 1 Series:
- SMA
- Connector 2 Gender:
- Female
- Connector 2 Series:
- SMA
- Frequency, Max:
- 23 GHz
- Frequency, Min:
- 7 KHz
- Max Voltage, DC:
- 100 V
- Product Type:
- Inner
- Type:
- Firesale
PRODUCT DETAILS
INMET P/N 8535
INMET 8535 - DC BLOCK - Inner Only - SMA Male to SMA Female - 7 KHz to 23 GHz
(NOTE: Special Pricing - FIRE Sale Item.) - No drawing available - In original packaging. Non-Cancellable/Non-Returnable
Electrical
• Frequency Range: 7 KHz to 23 GHz
• VSWR
| 7 KHz - 23 GHz: | 1.35:1 |
• Insertion Loss
| 100 KHz - 12.4 GHz: | 0.50 dB |
| 12.4 - 23 GHz: | 0.75 dB |
• Impedence: 50 Ohms
• Voltage: 100 Volts
Material
• Connector Body & Coupling Nut: Passivated Stainless Steel
• Center Contact: Gold Plated Beryllium Copper
Environmental Data
• Temperature Range: -65°C - 125°C
