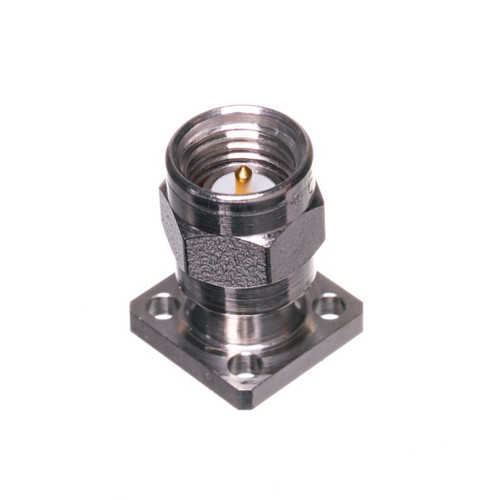

211-511SF,Southwest Microwave SMA Male Connector 4 Hole, .015 Pin

SMA Male Connector 4 Hole .375" Square Flange - Accepts .015 Pin Dia., tested to 27 GHz

$35.06

Part #:

211-511SF

Brand:

Southwest Microwave

Weight:

0.50 Ounces

Shipping:

Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$35.06

$30.04

$23.78

$19.42

PRODUCT DETAILS
Warranty Information

Description

The 211-511SF is a 4 Hole Square Flange SMA Male connector manufactured by Southwest Microwave. This SMA Male accepts a 0.015" Pin Diameter and will operate up to 27 GHz. The flange size is .375" All Southwest Microwave SMA connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts. This connector conforms to MIL-STD-348A and MIL-PRF-39012. Southwest Microwave Cage Code: 66049

« Click Here for the 211-511SF Datasheet

ELECTRICAL

Parameter	Specification
Frequency Range	DC - 27 GHz
VSWR	1.15:1 Max
Impedance	50 Ohms

MATERIALS

Item	Specification (Note: All plating thickness values are in micro-inches)
Body	Passivated Stainless Steel
Contact Pin	Beryllium Copper (BeCu), UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488
Center Contact Capture	High Temperature Ultem 1000 Per ASTM D5205
Connector Interface	Per MIL-STD-348, Figs. 310-1 and 310-2

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Connector 1 Mount:: 4 Hole
Frequency, Max:: 27 GHz
Frequency, Min:: DC
Gender:: Male
Mount Flange Size:: .375
Pin Diameter:: .015
Series:: SMA

PRODUCT DETAILS

« Click Here for the 211-511SF Datasheet

ELECTRICAL

Parameter	Specification
Frequency Range	DC - 27 GHz
VSWR	1.15:1 Max
Impedance	50 Ohms

MATERIALS

Item	Specification (Note: All plating thickness values are in micro-inches)
Body	Passivated Stainless Steel
Contact Pin	Beryllium Copper (BeCu), UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488
Center Contact Capture	High Temperature Ultem 1000 Per ASTM D5205
Connector Interface	Per MIL-STD-348, Figs. 310-1 and 310-2
