HSFL42-S1-S1-60 SMA Male to SMA Male cable, HSFL42 Flexible Cable

SMA Male to SMA Male Test Cable using HSFL42 Ultra Flexible Cable, Phase Stable vs. Flexure, 60 Inches

$141.48

Part #:

HSFL42-S1-S1-60

Brand:

HASCO Components

Weight:

2.50 Ounces

Shipping:

Calculated at checkout

Current Stock:

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$141.48

$139.65

$137.26

$133.04

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HSFL42-S1-S1-60

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HSFL42-S1-S1-60 is an RF cable assembly manufactured by HASCO Components. The RF coax cable used is HSFL42, an ultra flexible phase stable against flexure RF cable. HSFL42-S1-S1-60 has SMA Male to SMA Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

« Click Here for the HSFL42-S1-S1-60 Datasheet

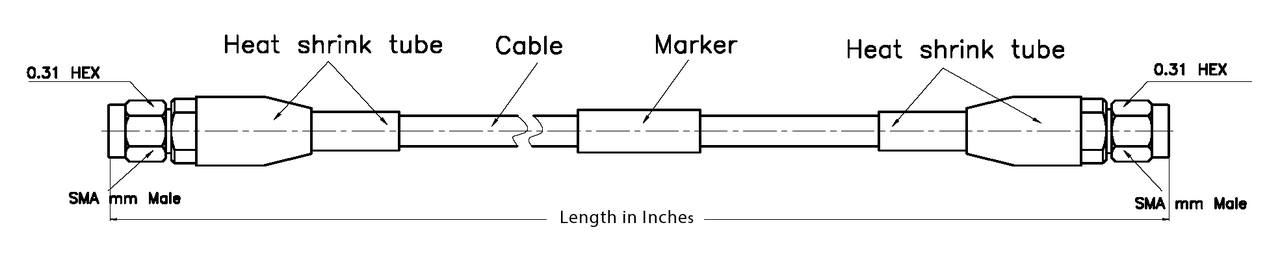

« Click Here for the HSFL42-S1-S1-60 Outline Drawing

FEATURES:

RoHS Compliant
Low Loss, Low VSWR, High Reliability
Phase Stability Vs. Flexure: ±3° @ 26.5GHz
(When wrapped 360°around a 1" diameter mandrel)
Available with Stainless Steel Armor
Amplitude Stability: < ± 0.3 through 26.5 GHz
Low Loss at 0.83 dB per Ft @ 26.5 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)	26.5
Capacitance (pF/ft)	29.4
Velocity Propagation (%)	70
RF Leakage @ 18 GHz (dB)
Time Delay (ns/Ft)	1.43
Impedance (Ohms)	50
Frequency (GHz)	2	6	18	26.5
Power CW (Watts)	350	175	100	72
Phase Stability vs. Flexure (°)	±0.23	±0.7	±2.0	±3.0

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)	0.18
Min. bend radius (Inch)	1.0
Recommend Bend Radius (Inch)	1.639
Temperature Range (°C)	-55 to +850

MATERIALS AND FINISHES:

DESCRIPTION	MATERIALS	FINISH OR COLOR
Cable Jacket	FEP	Blue
Marker	Mil-l-23053	White
Contacts	BeCu	Gold Plated
Insulators	PTFE	None
Connector Bodies	Stainless Steel	Passivated
Connector Nuts	Stainless Steel	Passivated
Gasket	Silicon Rubber	A-A-59588

Test #1: SMA Male to SMA Male, 24 inches, DC - 26.5 GHz

Test #2: SMA Male to SMA Male, 24 inches, DC - 26.5 GHz

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Cable Diameter:: .180
Cable Length (Inch):: 60
Cable Series:: HSFL42
Cable Type:: Phase Stable
Connector 1 Gender:: Male
Connector 1 Series:: SMA
Connector 1 Style:: Straight
Connector 2 Gender:: Male
Connector 2 Series:: SMA
Connector 2 Style:: Straight
Flex Type:: Flexible
Frequency, Max:: 26.5 GHz
Frequency, Min:: DC
Jacket Material:: PVC
Velocity of Propogation (%):: 70
