Description

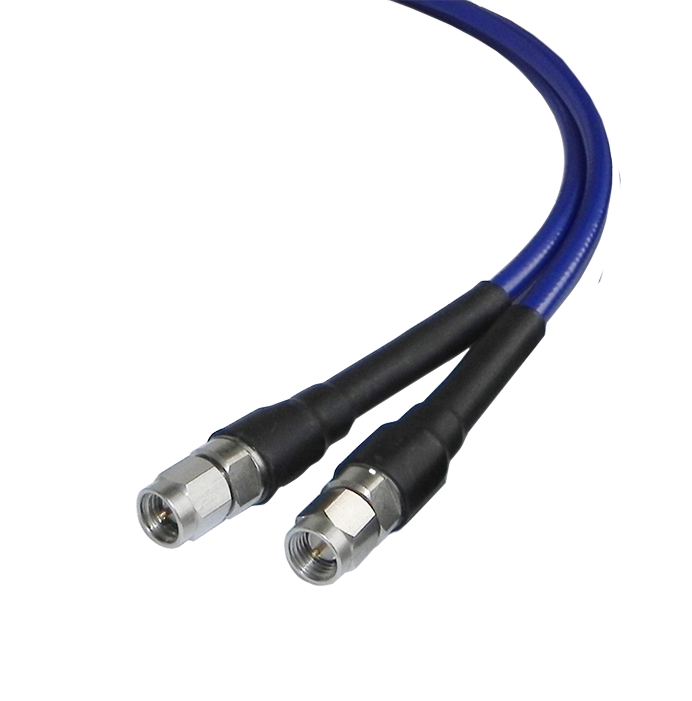

« Click Here for the HSB42-S1-S1-24 Datasheet« Click Here for the HSB42-S1-S1-24 Outline DrawingFEATURES:
- RoHS Compliant
- Very flexible with bend radius of 1.95"
- Good performance even after 20,000 flex cycles
- Phase Stability Vs. Flexure: ± 2.95° @ 26.5 GHz
(When wrapped 360°around a 1.95" radius mandrel) - Available with Stainless Steel Armor
- Cable Insertion Loss: -.79 dB per Ft @ 26.5 GHz
- Excellent Amplitude Stability: < ± 0.1 dB through 26.5 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 26.5 |
|
|
|
|
| Capacitance (pF/ft) | 29.4 |
|
|
|
|
| Velocity Propagation (%) | 70 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.40 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 10 | 18 | 26.5 |
| Power CW (Watts) | 420 | 215 | 140 | 125 | 75 |
| Phase Stability vs. Flexure (°) | ±0.22 | ±.67 | ±1.11 | ±2 | ±2.95 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.195 |
| Min. bend radius (Inch) | 1.0 |
| Recommend Bend Radius (Inch) | 1.95 |
| Temperature Range (°C) | -55 to +105 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | PVC | Blue |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test #1: SMA Male to SMA Male, 30 inches, DC - 26.5 GHz
Test #2: SMA Male to SMA Male, 30 inches, DC - 26.5 GHz
- Cable Diameter:
- .195
- Cable Length (Inch):
- 24
- Cable Series:
- HSB42
- Cable Type:
- Amplitude Stable
- Cable Type:
- Low Loss
- Cable Type:
- Phase Stable
- Connector 1 Gender:
- Male
- Connector 1 Series:
- SMA
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Male
- Connector 2 Series:
- SMA
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 26.5 GHz
- Frequency, Min:
- DC
- Jacket Material:
- PVC
- Velocity of Propogation (%):
- 70
PRODUCT DETAILS
« Click Here for the HSB42-S1-S1-24 Datasheet« Click Here for the HSB42-S1-S1-24 Outline DrawingFEATURES:
- RoHS Compliant
- Very flexible with bend radius of 1.95"
- Good performance even after 20,000 flex cycles
- Phase Stability Vs. Flexure: ± 2.95° @ 26.5 GHz
(When wrapped 360°around a 1.95" radius mandrel) - Available with Stainless Steel Armor
- Cable Insertion Loss: -.79 dB per Ft @ 26.5 GHz
- Excellent Amplitude Stability: < ± 0.1 dB through 26.5 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 26.5 |
|
|
|
|
| Capacitance (pF/ft) | 29.4 |
|
|
|
|
| Velocity Propagation (%) | 70 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.40 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 10 | 18 | 26.5 |
| Power CW (Watts) | 420 | 215 | 140 | 125 | 75 |
| Phase Stability vs. Flexure (°) | ±0.22 | ±.67 | ±1.11 | ±2 | ±2.95 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.195 |
| Min. bend radius (Inch) | 1.0 |
| Recommend Bend Radius (Inch) | 1.95 |
| Temperature Range (°C) | -55 to +105 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | PVC | Blue |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test #1: SMA Male to SMA Male, 30 inches, DC - 26.5 GHz
Test #2: SMA Male to SMA Male, 30 inches, DC - 26.5 GHz
