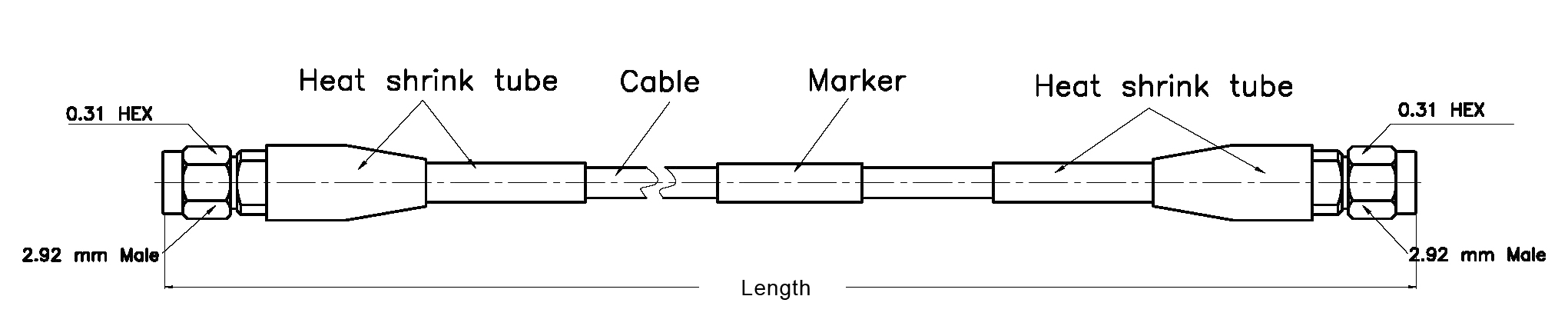

« Click Here for the HLL150-29P-29P-48 Datasheet« Click Here for the HLL150-29P-29P-48 Outline DrawingFEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
- Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
- Available with Stainless Steel Armor
- Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
- Amplitude Stability: < ± 0.4 through 40 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 40 |
|
|
|
|
| Capacitance (pF/ft) | 24 |
|
|
|
|
| Velocity Propagation (%) | 83 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) |
|
|
|
| |
| Time Delay (ns/Ft) | 1.2 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 2 | 6 | 18 | 26.5 | 40 |
| Power CW (Watts) | 420 | 215 | 125 | 100 | 75 |
| Phase Stability vs. Flexure (°) | ±0.4 | ±1.2 | ±3.6 | ±5.3 | ±8.0 |
MECHANICAL SPECIFICATIONS:
| VA Armor Max Dia. (Inch) | 0.15 |
| Min. bend radius (Inch) | .75 |
| Recommend Bend Radius (Inch) | 2.0 |
| Temperature Range (°C) | -55 to +85 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Blue |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | PEEK | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz
Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz
- Cable Diameter:
- .150
- Cable Length (Inch):
- 48
- Cable Series:
- HLL150
- Cable Type:
- Low Loss
- Cable Type:
- Phase Stable
- Connector 1 Gender:
- Male
- Connector 1 Series:
- 2.92mm
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Male
- Connector 2 Series:
- 2.92mm
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 40 GHz
- Frequency, Min:
- DC
- Jacket Material:
- FEP
- Type:
- Standard Test
- Velocity of Propogation (%):
- 83
