HLL150-29P-29P-18 2.92mm Male to 2.92mm Male cable, HLL150 Cable

2.92mm Male to 2.92mm Male Test Cable using HLL150 Low Loss Flexible Cable, Phase Stable vs. Flexure, 18 Inches

$161.18

Part #:

HLL150-29P-29P-18

Brand:

HASCO Components

Weight:

4.00 Ounces

Shipping:

Calculated at checkout

Out of stock - Call for availability

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$161.18

$159.08

$156.35

$151.65

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HLL150-29P-29P-18

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HLL150-29P-29P-18 is an RF test cable manufactured by HASCO Components. The RF cable used is HLL150, it is designed to be Phase Stable against Flexure. HLL150-29P-29P-18 has 2.92mm Male to 2.92mm Male connectors. This RF Assembly is rated up to 40 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

« Click Here for the HLL150-29P-29P-18 Datasheet

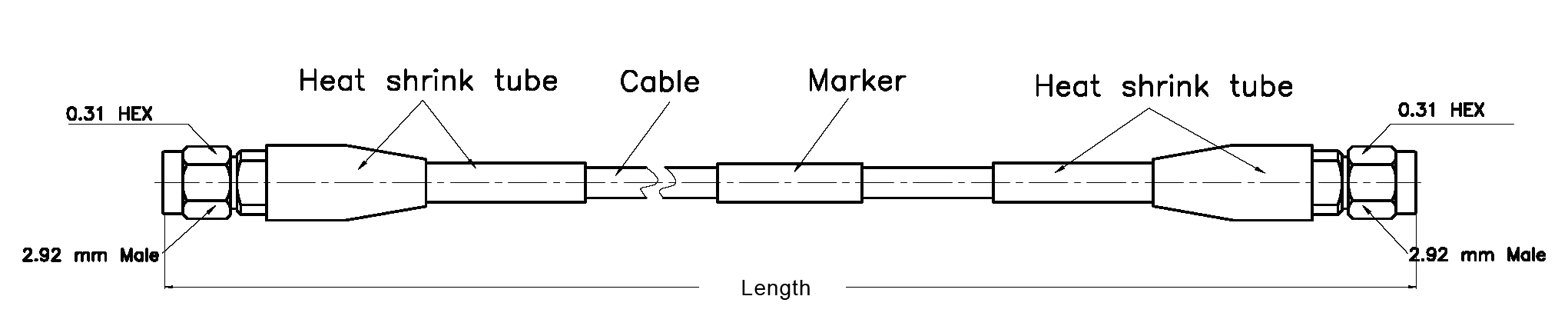

« Click Here for the HLL150-29P-29P-18 Outline Drawing

FEATURES:

RoHS Compliant
Low Loss, Low VSWR, High Reliability
Phase Stable over Temp: 550ppm Max @ -40°C ~ +85°C
Phase Stability Vs. Flexure: ± 8° @ 40GHz (When wrapped 360° around a 2" diameter mandrel)
Available with Stainless Steel Armor
Cable Insertion Loss: -.75 dB per Ft @ 40 GHz
Amplitude Stability: <± 0.4 through 40 GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)	40
Capacitance (pF/ft)	24
Velocity Propagation (%)	83
RF Leakage @ 18 GHz (dB)
Time Delay (ns/Ft)	1.2
Impedance (Ohms)	50
Frequency (GHz)	2	6	18	26.5	40
Power CW (Watts)	420	215	125	100	75
Phase Stability vs. Flexure (°)	±0.4	±1.2	±3.6	±5.3	±8.0

MECHANICAL SPECIFICATIONS:

VA Armor Max Dia. (Inch)	0.15
Min. bend radius (Inch)	.75
Recommend Bend Radius (Inch)	2.0
Temperature Range (°C)	-55 to +85

MATERIALS AND FINISHES:

DESCRIPTION	MATERIALS	FINISH OR COLOR
Cable Jacket	FEP	Blue
Marker	Mil-l-23053	White
Contacts	BeCu	Gold Plated
Insulators	PEEK	None
Connector Bodies	Stainless Steel	Passivated
Connector Nuts	Stainless Steel	Passivated
Gasket	Silicon Rubber	A-A-59588

Test #1: 2.92mm Male to 2.92mm Male, 24 inches, DC - 40 GHz

Test #2: 2.92mm to 2.92mm Male, 24 inches, DC - 40 GHz

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Cable Diameter:: .150
Cable Length (Inch):: 18
Cable Series:: HLL150
Cable Type:: Low Loss
Cable Type:: Phase Stable
Connector 1 Gender:: Male
Connector 1 Series:: 2.92mm
Connector 1 Style:: Straight
Connector 2 Gender:: Male
Connector 2 Series:: 2.92mm
Connector 2 Style:: Straight
Flex Type:: Flexible
Frequency, Max:: 40 GHz
Frequency, Min:: DC
Jacket Material:: FEP
Type:: Standard Test
Velocity of Propogation (%):: 83
