HLL142-35P-35P-30 3.5mm Male to 3.5mm Male cable, HLL142 Cable

3.5mm Male to 3.5mm Male Test Cable using HLL142 Low Loss Flexible Cable, Phase Stable vs. Temperature, 30 Inches

$167.13

Part #:

HLL142-35P-35P-30

Brand:

HASCO Components

Weight:

5.00 Ounces

Shipping:

Calculated at checkout

Current Stock:

For quantities greater than current stock levels, please contact customer service at 1-888-498-3242

Pricing by Quantity:

QUANTITY

1 to 9

Buy 10 - 24

Buy 25 - 49

Buy 50 or above

PRICE

$167.13

$164.96

$162.12

$157.26

PRODUCT DETAILS
Warranty Information

Description

HASCO Part Number: HLL142-35P-35P-30

RF Cable Assemblies offered by HASCO Components are available in a variety of RF connectors and custom lengths for production and testing environments. HLL142-35P-35P-30 is an RF test cable manufactured by HASCO Components. The RF cable used is HLL142, it is designed to be phase stable against temperature. HLL142-35P-35P-30 has 3.5mm Male to 3.5mm Male connectors. This RF Assembly is rated up to 26.5 GHz. For additional technical information please refer to the datasheet. HASCO Cage Code: 0T8L4

« Click Here for the HLL142-35P-35P-30 Datasheet

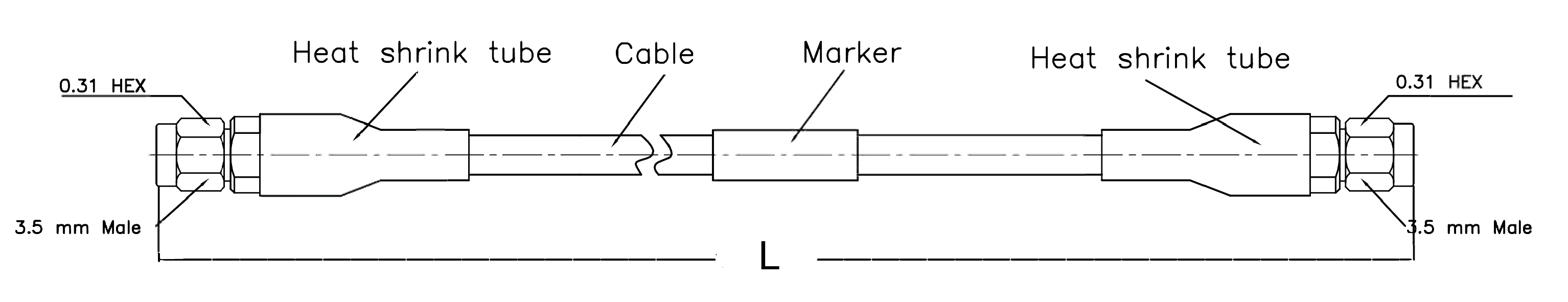

« Click Here for the HLL142-35P-35P-30 Outline Drawing

FEATURES:

RoHS Compliant
Low Loss, Low VSWR, High Reliability
Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C
Phase Stability Vs. Flexure: ± 5.3° @ 26.5GHz
(When wrapped 360°around a 1.5 diameter mandrel)
Available with Stainless Steel Armor
VSWR: 1.35:1
Cable Insertion Loss: -.48 dB per ft @ 26.5GHz
Amplitude Stability: < ± 0. 3 through 26.5GHz

ELECTRICAL SPECIFICATIONS:

Max Frequency (GHz)	26.5
Capacitance (pF/ft)	82
Velocity Propagation (%)	80
RF Leakage @ 18 GHz (dB)	95
Time Delay (ns/Ft)	4.14
Impedance (Ohms)	50
Frequency (GHz)	2	6	18	26.5
Power CW (Watts)	510	285	165	135
Attenuation Typ. (dB/m)	0.0271	0.661	0.825	1.469
Phase Stability vs. Flexure (°)	±0.4	±1.2	±3.6	±5.3

MECHANICAL SPECIFICATIONS:

Cable Max Dia. (Inch)	0.195
Min. bend radius (Inch)	1.0
Recommend Bend Radius (Inch)	2.0
Temperature Range (°C) *High Temperature Strain Relief Available upon Request.	-55 to +85
Raw Cable Temperature Range (°C)	-55 to +200

MATERIALS AND FINISHES:

DESCRIPTION	MATERIALS	FINISH OR COLOR
Cable Jacket	FEP	Light Green
Marker	Mil-l-23053	White
Contacts	BeCu	Gold Plated
Insulators	PEEK	None
Connector Bodies	Stainless Steel	Passivated
Connector Nuts	Stainless Steel	Passivated
Gasket	Silicon Rubber	A-A-59588

Test #1: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz

Test #2: 3.5mm Male to 3.5mm Male, 24 inches, DC - 30 GHz

*** FOR QUANTITIES GREATER THAN CURRENT STOCK LEVELS CONTACT CUSTOMER SERVICE 1-888-498-3242

Cable Diameter:: .195
Cable Length (Inch):: 30
Cable Series:: HLL142
Cable Type:: Low Loss
Cable Type:: Phase Stable
Connector 1 Gender:: Male
Connector 1 Series:: 3.5mm
Connector 1 Style:: Straight
Connector 2 Gender:: Male
Connector 2 Series:: 3.5mm
Connector 2 Style:: Straight
Flex Type:: Flexible
Frequency, Max:: 26.5 GHz
Frequency, Min:: DC
Jacket Material:: FEP
Type:: Standard Test
Velocity of Propogation (%):: 80
