Description
« Click Here for the HVNA26-35NMD-35J-30 Datasheet FEATURES:
- RoHS Compliant
- Extra rugged and long-life performance
- High stability for test lab precision measurements
- Negligible changes of phase & amplitude after flexing
- Phase Stability Vs. Flexure: ± 2° @ 26.5 GHz
(When wrapped 90°around a 2" radius mandrel) - Insertion Loss: 2.52 dB per Ft @ 26.5 GHz
- Excellent Amplitude Stability: < ± 0.4 dB through 26.5 GHz
ELECTRICAL SPECIFICATIONS:
|
Max Frequency (GHz) |
26.5 |
|
|
|
|
|
Capacitance (pF/ft) |
29.4 |
|
|
|
|
|
Velocity Propagation (%) |
70 |
|
|
|
|
|
RF Leakage @ 18 GHz (dB) |
|
|
|
|
|
|
Time Delay (ns/Ft) |
1.40 |
|
|
|
|
|
Impedance (Ohms) |
50 |
|
|
|
|
|
Frequency (GHz) |
2 |
6 |
10 |
18 |
26.5 |
|
Power CW (Watts) |
420 |
215 |
140 |
125 |
75 |
|
Phase Stability vs. Flexure (°) |
±0.19 |
±.57 |
±.94 |
±1.7 |
±2.5 |

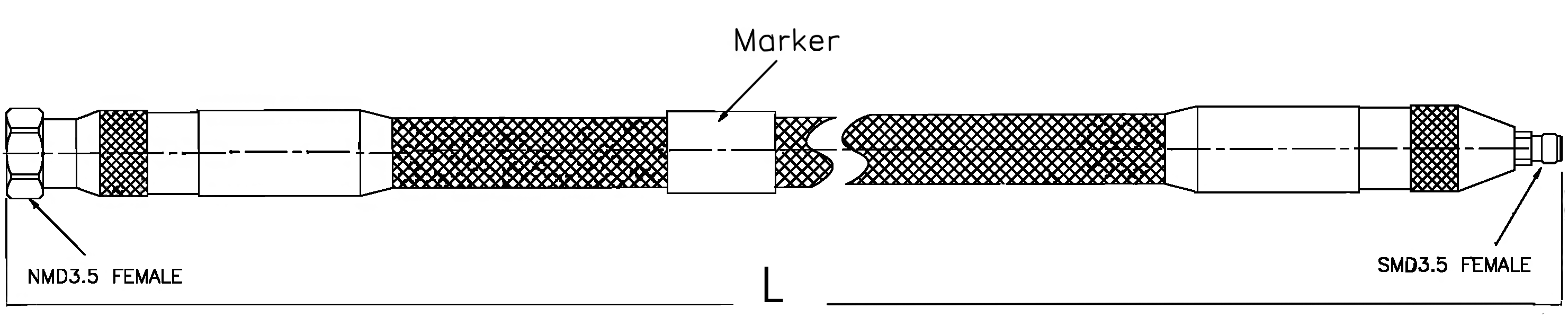

MECHANICAL SPECIFICATIONS:
|
Cable Max Dia. (Inch) |
0.6 |
|
Min. bend radius (Inch) |
1.5 |
|
Recommend Bend Radius (Inch) |
2 |
|
Temperature Range (°C) |
-40 to +105 |
MATERIALS AND FINISHES:
|
DESCRIPTION |
MATERIALS |
FINISH OR COLOR |
|
Cable Outer Braid |
Polyester-PET |
Black |
|
Marker |
Mil-l-23053 |
White |
|
Contacts |
BeCu |
Gold Plated |
|
Insulators |
PEEK |
None |
|
Connector Bodies (35P) |
Stainless Steel & |
Passivated / Electrophoresis |
|
Connector Bodies (NMD35) |
Stainless Steel |
Passivated |
|
Connector Nuts (35P) |
Stainless Steel & |
Passivated |
|
Gasket |
Silicon Rubber |
A-A-59588 |
Test #1: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz
Test #2: NMD 3.5mm Female to 3.5mm Male, 36 inches, DC - 26.5 GHz
- Cable Diameter:
- .600
- Cable Length (Inch):
- 30
- Cable Series:
- HVNA26
- Cable Type:
- Amplitude Stable
- Cable Type:
- Phase Stable
- Connector 1 Gender:
- Female
- Connector 1 Series:
- 3.5mm NMD
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Female
- Connector 2 Series:
- 3.5mm
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 26.5 GHz
- Frequency, Min:
- DC
- Jacket Material:
- PET
- Type:
- VNA
- Velocity of Propogation (%):
- 70
- Connector 1 Series:
- 3.5mm
- Connector 2 Series:
- 3.5mm NMD
