« Click Here for the HLL140-24P-24P-18 Datasheet
(NOTE: Special Pricing - FIRE Sale Item.) - In original packaging. Non-Cancellable/Non-Returnable
• This cable has been replaced by the HLL140M in regular stock. These have been placed in the FireSale Section at a discount because we only have a few left. These are brand new cables.
• To view the HLL140M cables please click HERE.
FEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C
- Attenuation: .95 dB/ft
- VSWR: 2 straight connectors 1.40:1
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 52 |
|
|
|
|
| Velocity Propagation (%) | 84 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) | <-100 |
|
|
|
|
| Time Delay (ns/Ft) | 1.2 |
|
|
|
|
| Impedence (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 50 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.14 |
| Min. bend radius (Inch) | .75 |
| Recommend Bend Radius (Inch) | 1.5 |
| Temperature Range (°C) | -55 to +85 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Yellow |
| Marker | Mil-l-23053 | Black or White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |

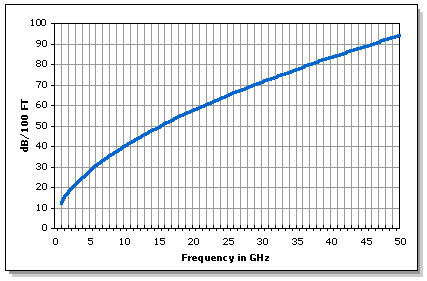

CABLE ATTENUATION

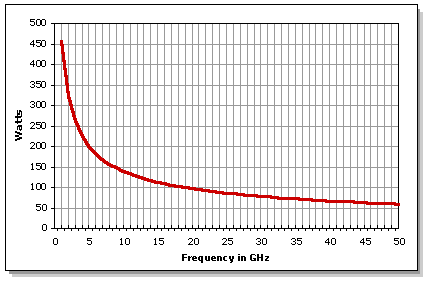

AVERAGE POWER
- Cable Diameter:
- .141
- Cable Length (Inch):
- 18
- Cable Series:
- HLL140
- Cable Type:
- Low Loss
- Cable Type:
- Phase Stable
- Connector 1 Gender:
- Male
- Connector 1 Series:
- 2.4mm
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Male
- Connector 2 Series:
- 2.4mm
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 50 GHz
- Frequency, Min:
- DC
- Jacket Material:
- FEP
- Type:
- Firesale
- Type:
- Standard Test
- Velocity of Propogation (%):
- 84
PRODUCT DETAILS
« Click Here for the HLL140-24P-24P-18 Datasheet
(NOTE: Special Pricing - FIRE Sale Item.) - In original packaging. Non-Cancellable/Non-Returnable
• This cable has been replaced by the HLL140M in regular stock. These have been placed in the FireSale Section at a discount because we only have a few left. These are brand new cables.
• To view the HLL140M cables please click HERE.
FEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Phase Stable over Temp: 250ppm Max @ +22°C ~ +100°C
- Attenuation: .95 dB/ft
- VSWR: 2 straight connectors 1.40:1
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 52 |
|
|
|
|
| Velocity Propagation (%) | 84 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) | <-100 |
|
|
|
|
| Time Delay (ns/Ft) | 1.2 |
|
|
|
|
| Impedence (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 50 |
MECHANICAL SPECIFICATIONS:
| Cable Max Dia. (Inch) | 0.14 |
| Min. bend radius (Inch) | .75 |
| Recommend Bend Radius (Inch) | 1.5 |
| Temperature Range (°C) | -55 to +85 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Yellow |
| Marker | Mil-l-23053 | Black or White |
| Contacts | BeCu | Gold Plated |
| Insulators | PTFE | None |
| Connector Bodies | Stainless Steel | Passivated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
CABLE ATTENUATION
AVERAGE POWER
