Description
NOTE: The HLL125 Cable is manufactured with both a black and yellow FEP jacket.

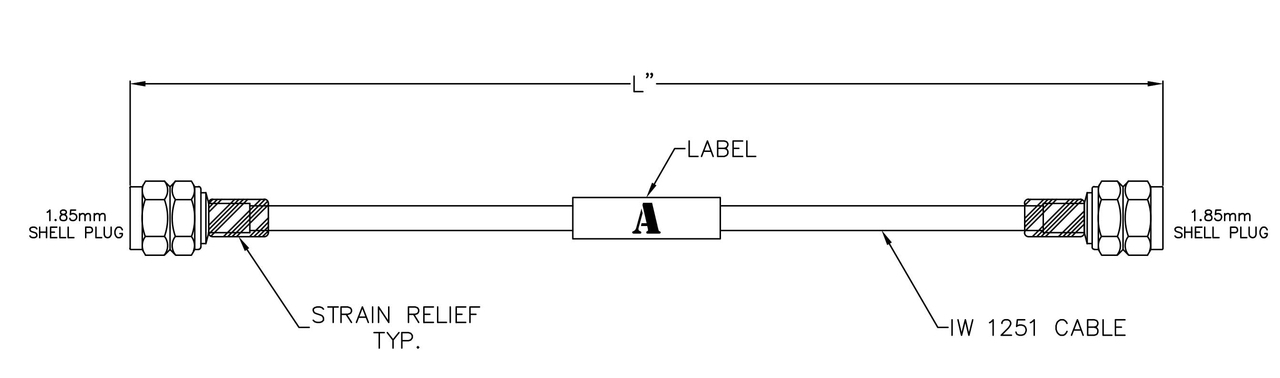

« Click Here for the HLL125-VP-VP-08 Datasheet« Click Here for the HLL125-VP-VP-08 Outline DrawingFEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Temperature Range: -65°C ~ +200°C
- Phase Stability Vs. Flexure: ± 15° @ 67GHz
(When wrapped 360°around a 2" diameter mandrel) - Cable Insertion Loss: - 2.10 dB per ft @ 65 GHz + Connector Loss: 0.4 dB per Connector
- Amplitude Stability: < ±0.2 dB through 67 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 67 |
|
|
|
|
| Capacitance (pF/ft) | 27 |
|
|
|
|
| Velocity Propagation (%) | 75 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) | <100 |
|
|
|
|
| Time Delay (ns/Ft) | 1.35 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 6 | 18 | 26.5 | 40 | 67 |
| Power CW (Watts) | 93 | 39 | 30 | 20 | 13 |
| Phase Stability vs. Flexure (°) | ±1.50 | ±4.00 | ±6.00 | ±10.00 | ±15.00 |
MECHANICAL SPECIFICATIONS:
| Cable Dia. (Inch) | 0.110 |
| Min. bend radius (Inch) | 0.5 |
| Recommend Bend Radius (Inch) | 4.00" |
| Temperature Range (°C) | -65 to +200 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Yellow or Black |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | XX | None |
| Connector Bodies | Brass | Gold Plated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test Data: 1.85mm Male to 1.85mm Male, 24 inches, DC - 67 GHz
- Cable Diameter:
- .110
- Cable Length (Inch):
- 8
- Cable Series:
- HLL125
- Cable Type:
- Amplitude Stable
- Cable Type:
- Low Loss
- Cable Type:
- Phase Stable
- Connector 1 Gender:
- Male
- Connector 1 Series:
- 1.85mm
- Connector 1 Style:
- Straight
- Connector 2 Gender:
- Male
- Connector 2 Series:
- 1.85mm
- Connector 2 Style:
- Straight
- Flex Type:
- Flexible
- Frequency, Max:
- 67 GHz
- Frequency, Min:
- DC
- Jacket Material:
- FEP
- Type:
- Standard Test
- Velocity of Propogation (%):
- 75
PRODUCT DETAILS
NOTE: The HLL125 Cable is manufactured with both a black and yellow FEP jacket.
« Click Here for the HLL125-VP-VP-08 Datasheet« Click Here for the HLL125-VP-VP-08 Outline DrawingFEATURES:
- RoHs Compliant
- Low Loss, Low VSWR, High Reliability
- Temperature Range: -65°C ~ +200°C
- Phase Stability Vs. Flexure: ± 15° @ 67GHz
(When wrapped 360°around a 2" diameter mandrel) - Cable Insertion Loss: - 2.10 dB per ft @ 65 GHz + Connector Loss: 0.4 dB per Connector
- Amplitude Stability: < ±0.2 dB through 67 GHz
ELECTRICAL SPECIFICATIONS:
| Max Frequency (GHz) | 67 |
|
|
|
|
| Capacitance (pF/ft) | 27 |
|
|
|
|
| Velocity Propagation (%) | 75 |
|
|
|
|
| RF Leakage @ 18 GHz (dB) | <100 |
|
|
|
|
| Time Delay (ns/Ft) | 1.35 |
|
|
|
|
| Impedance (Ohms) | 50 |
|
|
|
|
| Frequency (GHz) | 6 | 18 | 26.5 | 40 | 67 |
| Power CW (Watts) | 93 | 39 | 30 | 20 | 13 |
| Phase Stability vs. Flexure (°) | ±1.50 | ±4.00 | ±6.00 | ±10.00 | ±15.00 |
MECHANICAL SPECIFICATIONS:
| Cable Dia. (Inch) | 0.110 |
| Min. bend radius (Inch) | 0.5 |
| Recommend Bend Radius (Inch) | 4.00" |
| Temperature Range (°C) | -65 to +200 |
MATERIALS AND FINISHES:
| DESCRIPTION | MATERIALS | FINISH OR COLOR |
| Cable Jacket | FEP | Yellow or Black |
| Marker | Mil-l-23053 | White |
| Contacts | BeCu | Gold Plated |
| Insulators | XX | None |
| Connector Bodies | Brass | Gold Plated |
| Connector Nuts | Stainless Steel | Passivated |
| Gasket | Silicon Rubber | A-A-59588 |
Test Data: 1.85mm Male to 1.85mm Male, 24 inches, DC - 67 GHz
