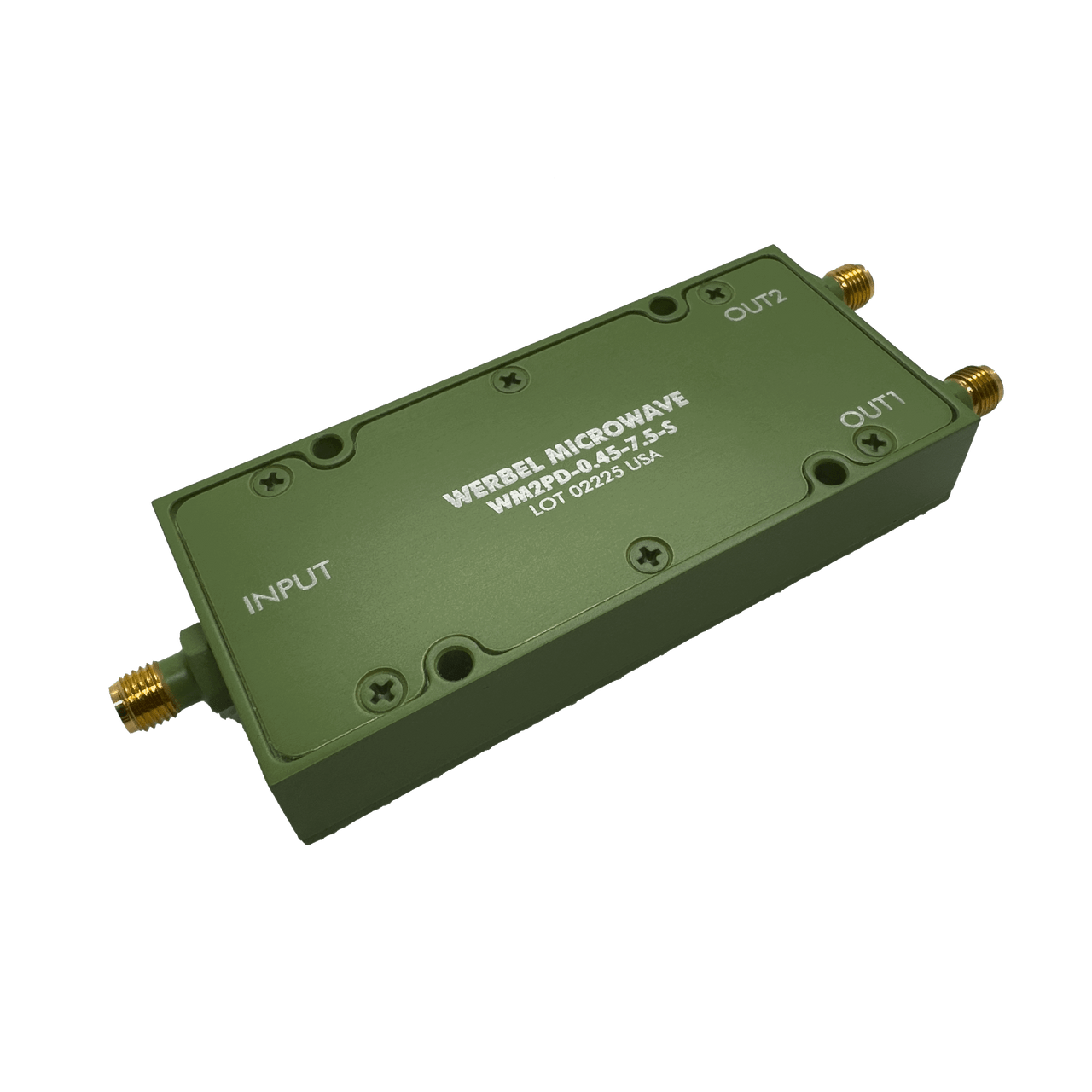

Power Divider 2-Way SMA Female - 0.45 to 7.5 GHz

P/N: WM2PD-0.45-7.5-S

Brand: Werbel Microwave

The WM2PD-0.45-7.5-S is an SMA female 2-way Power Divider covering the continuous bandwidth of 0.45 GHz to 7.5 GHz by Werbel Microwave. The product features low insertion loss, high isolation and excellent VSWR performance. Tight phase matching and amplitude balance between outputs. Typical insertion loss of 0.9 dB. Typical isolation of 21 dB. Return loss of 17.7 dB typical. Amplitude balance of 0.1 dB typical. Phase balance of 2.5 degrees typical. This device is RoHS compliant.

Littlebend HLB098 Ultra Flexible RF Cable with Type N Male Connectors - 12 inch

P/N: HLB098-NP-NP-12

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20” minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 18 GHz flexible cables are terminated with high performance Type N connectors. Also available in SMA, 1.0mm, 1.85mm, 2.4mm, 2.92mm, SMP and SMPM connectors. Additional configurations available by special order.

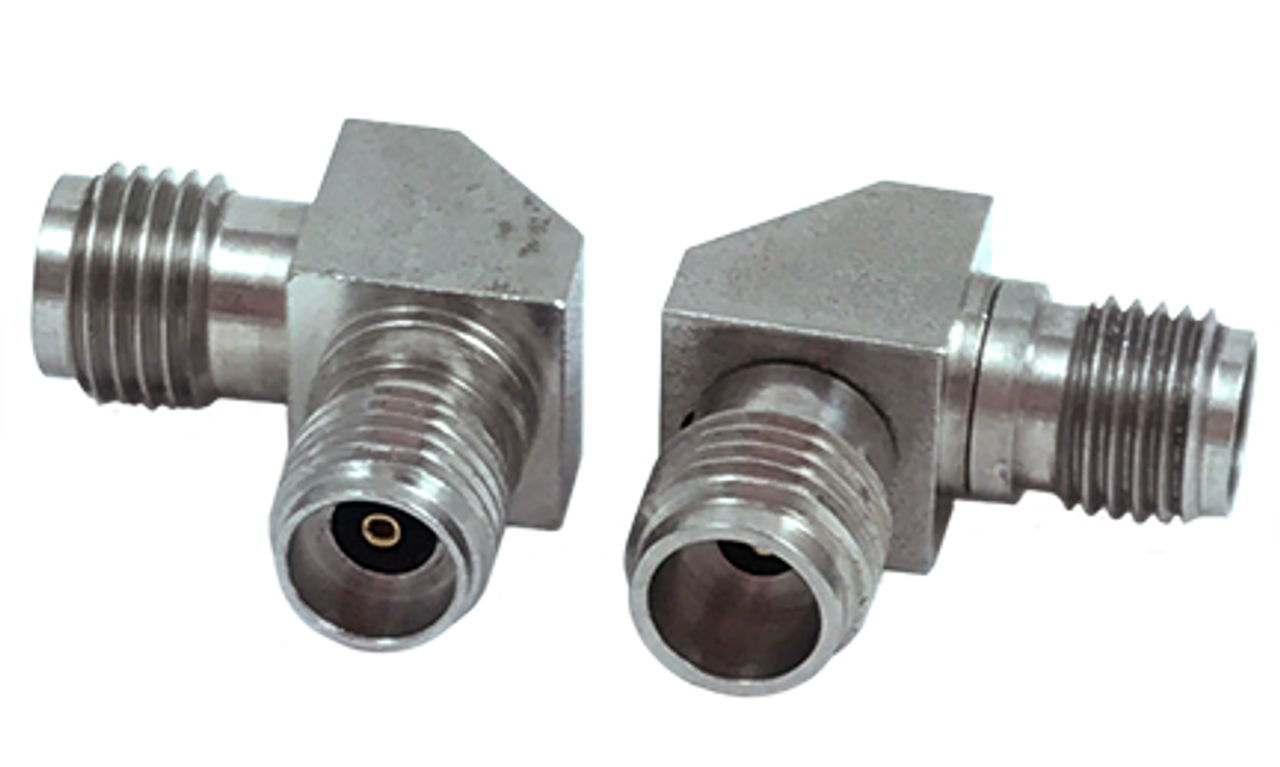

2.4mm Female to 2.92mm Female Right Angle Adapter - 40 GHz

P/N: 24J-29J-FF-RA

Brand: HASCO Components

FIRESALE Item

The 24J-29J-FF-RA is a 2.4mm Female to 2.92mm Female Right Angle between series adapter manufactured by HASCO Components. This between series 2.4mm to 2.92mm coax adapter will operate up to 40 GHz.

Our Firesale components are high performance components that either may be overstocked or discontinued. We extend the same level of support and guarantee the quality of these units, as with our standard stock items.

Check out our other FIRESALE parts here!

HASCO RF MARKETING PARTNER

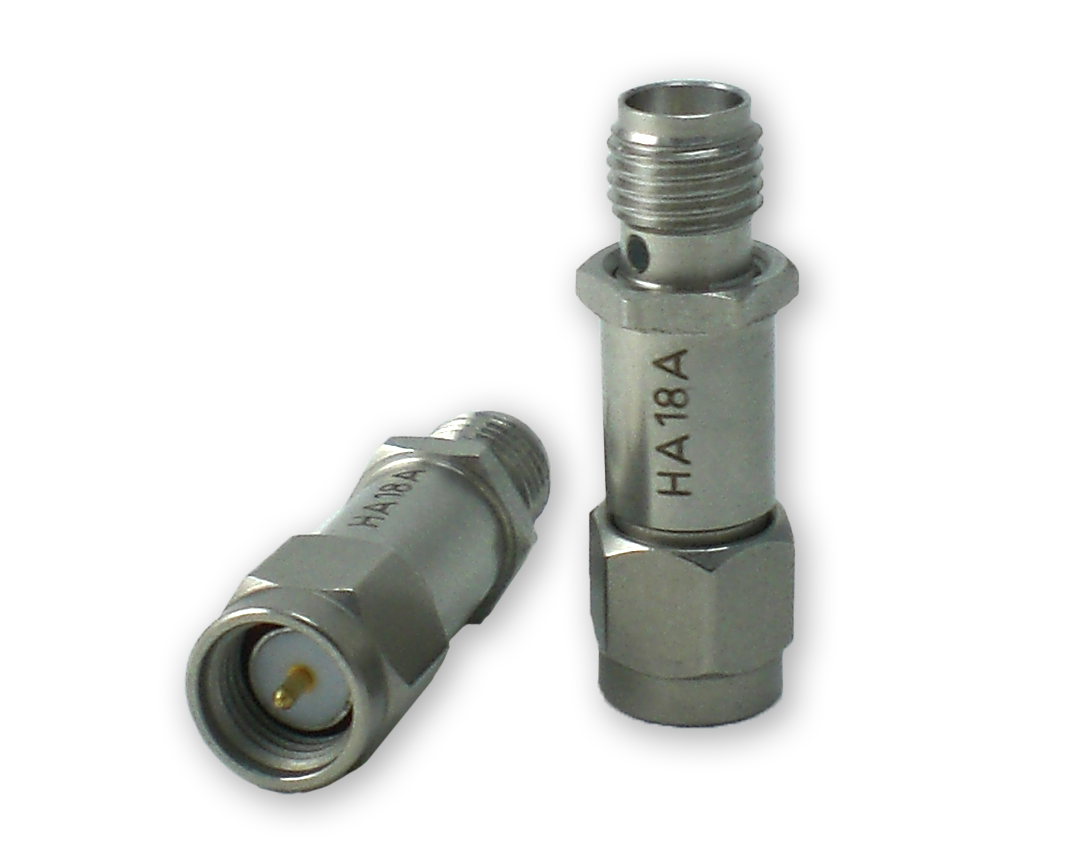

2 Watt Fixed Attenuator with SMA Male to SMA Female Connectors, 30 dB - 18 GHz

P/N: HA18A-30

Brand: HASCO Components

The HA18A-30 is a SMA Male to Female Attenuator manufactured by HASCO. This type of Attenuator is bidirectional. Attenuators like this HA18A-30 are used to reduce or step down the power level of a signal while maintaining the waveforms integrity. The operating frequency for this model is DC to 18 GHz and is rated for 2 Watts.

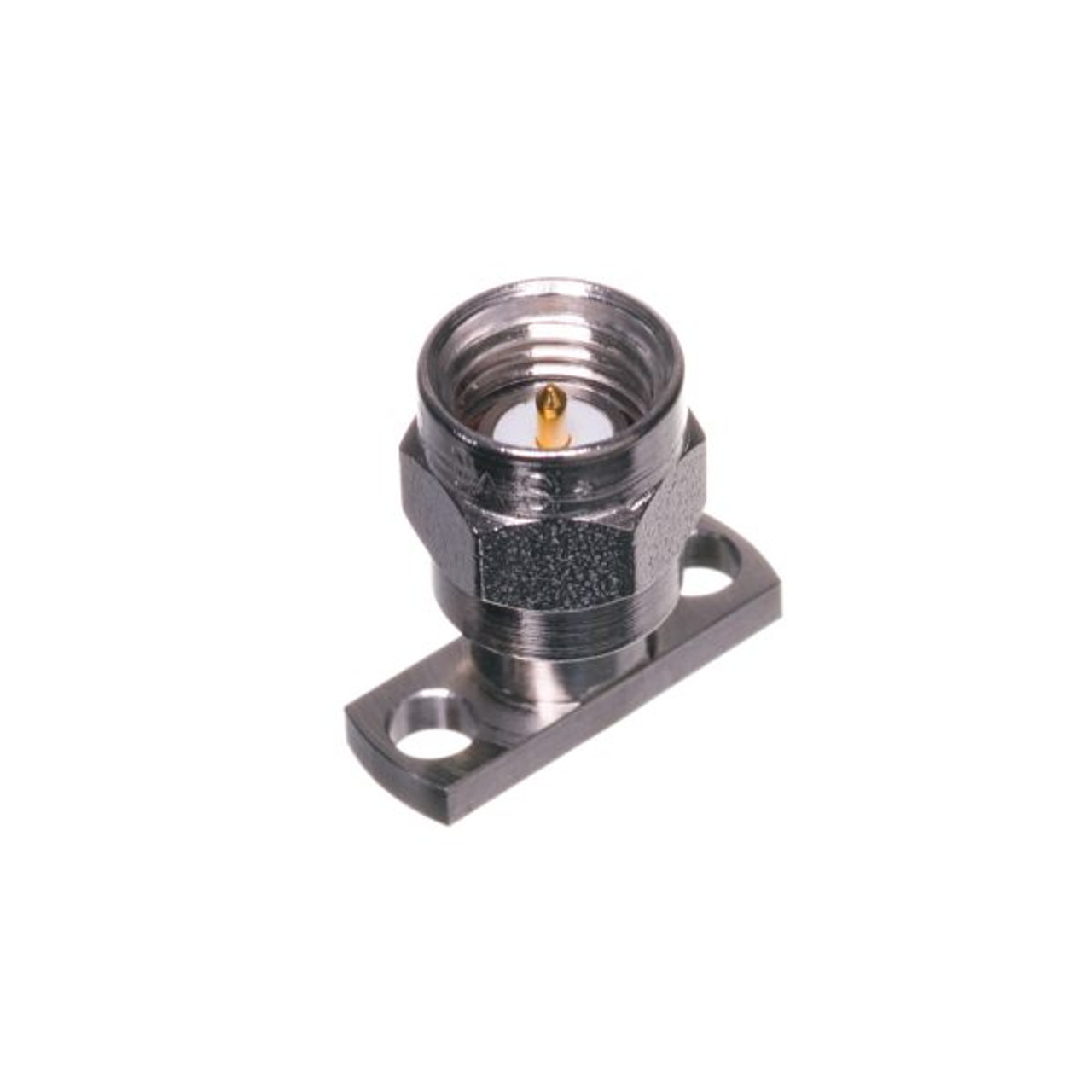

2-Hole SMA Male Connector, .550" Long Flange - 27 GHz

P/N: 213-512SF

Brand: Southwest Microwave

The 213-512SF is a 2 Hole Long Flange SMA Male connector manufactured by Southwest Microwave. This SMA Male accepts a 0.020" Pin Diameter and will operate up to 27 GHz. The flange size is .550" All Southwest Microwave SMA connectors are made of Stainless Steel with either Gold Plated Brass or Beryllium Copper center contacts.

HASCO's Quality Standard

When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.

HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.

• Let us know how we can assist you •
