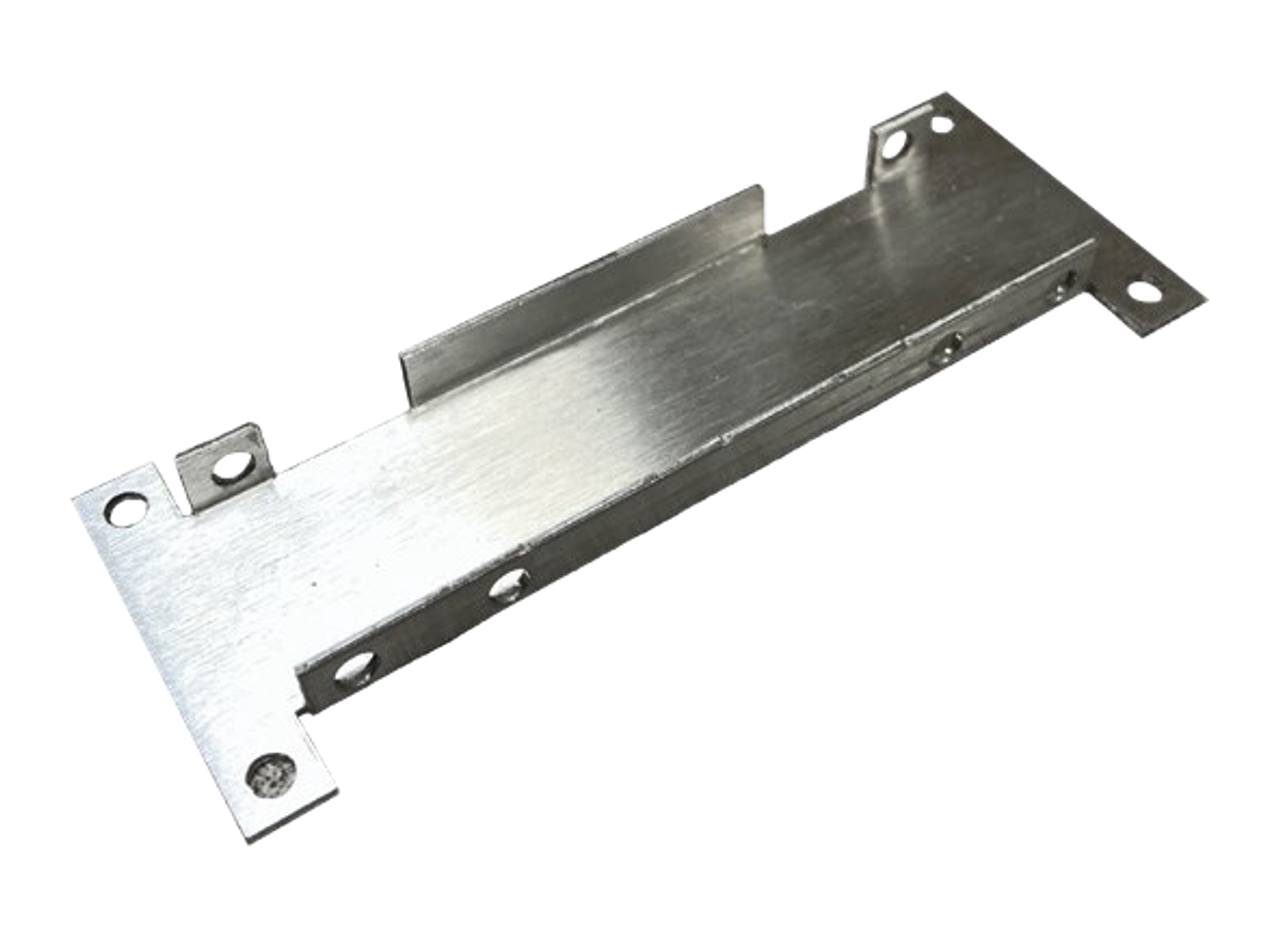

Universal Mounting Bracket for Directional Couplers

P/N: BKT-1830

Brand: Werbel Microwave

The BKT-1830 is a universal mounting bracket that is compatible with several series and models of directional couplers manufactured by Werbel Microwave. It allows convenient mounting to a chassis in various configurations. The bracket easily converts a vertical mount coupler format to a horizontal mounted configuration. The mounting is reversible, depending on where the input and output is required. Designed, assembled, and tested in USA with lead free solder making it RoHS compliant.

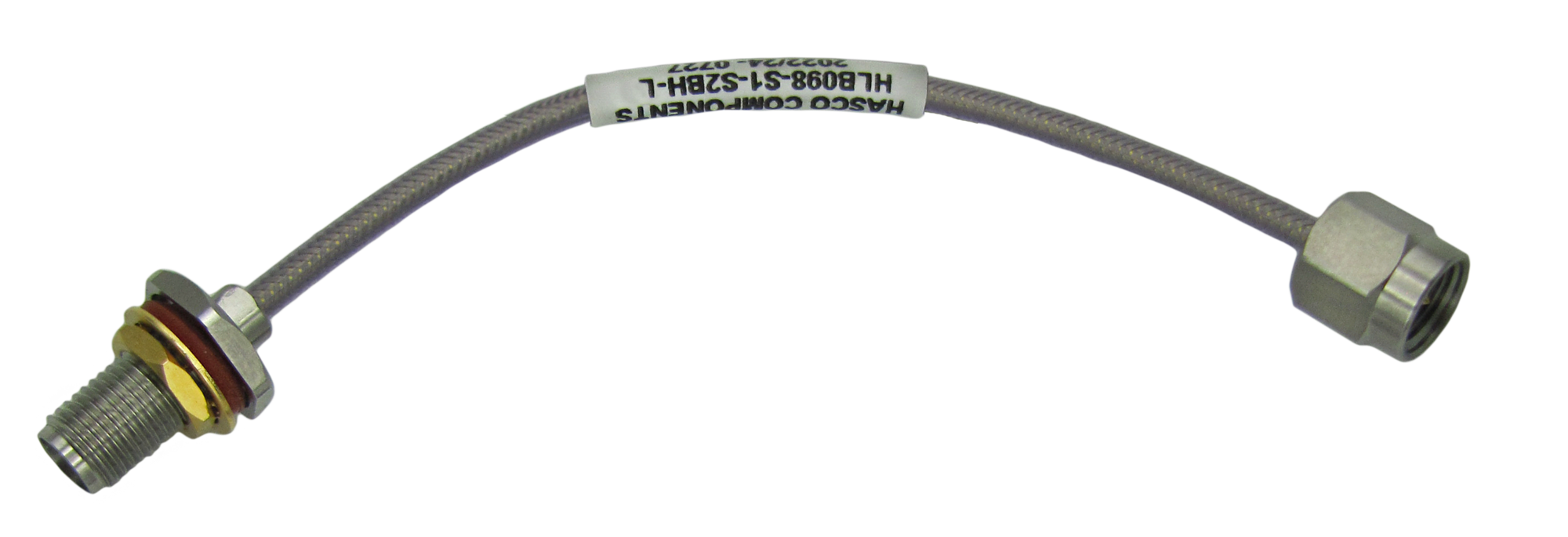

Littlebend HLB098 Ultra Flexible RF Cable with SMA Male to SMA Female Bulkhead Connectors - 22 inch

P/N: HLB098-S1-S2BH-22

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20" minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 26.5 GHz flexible cables are terminated with high performance SMA and SMA bulkhead connectors. Also available in 2.4mm, 2.92mm, SMP and SMPM connectors. Additional configurations available by special order.

2.4mm Male to 2.92mm Female Right Angle Adapter

P/N: 24P-29J-MF-RA

Brand: HASCO Components

FIRESALE Item

The 24P-29J-MF-RA is a 2.4mm Male to 2.92mm Female Right Angle between series adapter manufactured by HASCO Components. This between series 2.4mm to 2.92mm coax adapter will operate up to 40 GHz.

Our Firesale components are high performance components that either may be overstocked or discontinued. We extend the same level of support and guarantee the quality of these units, as with our standard stock items.

Check out our other FIRESALE parts here!

HASCO RF MARKETING PARTNER

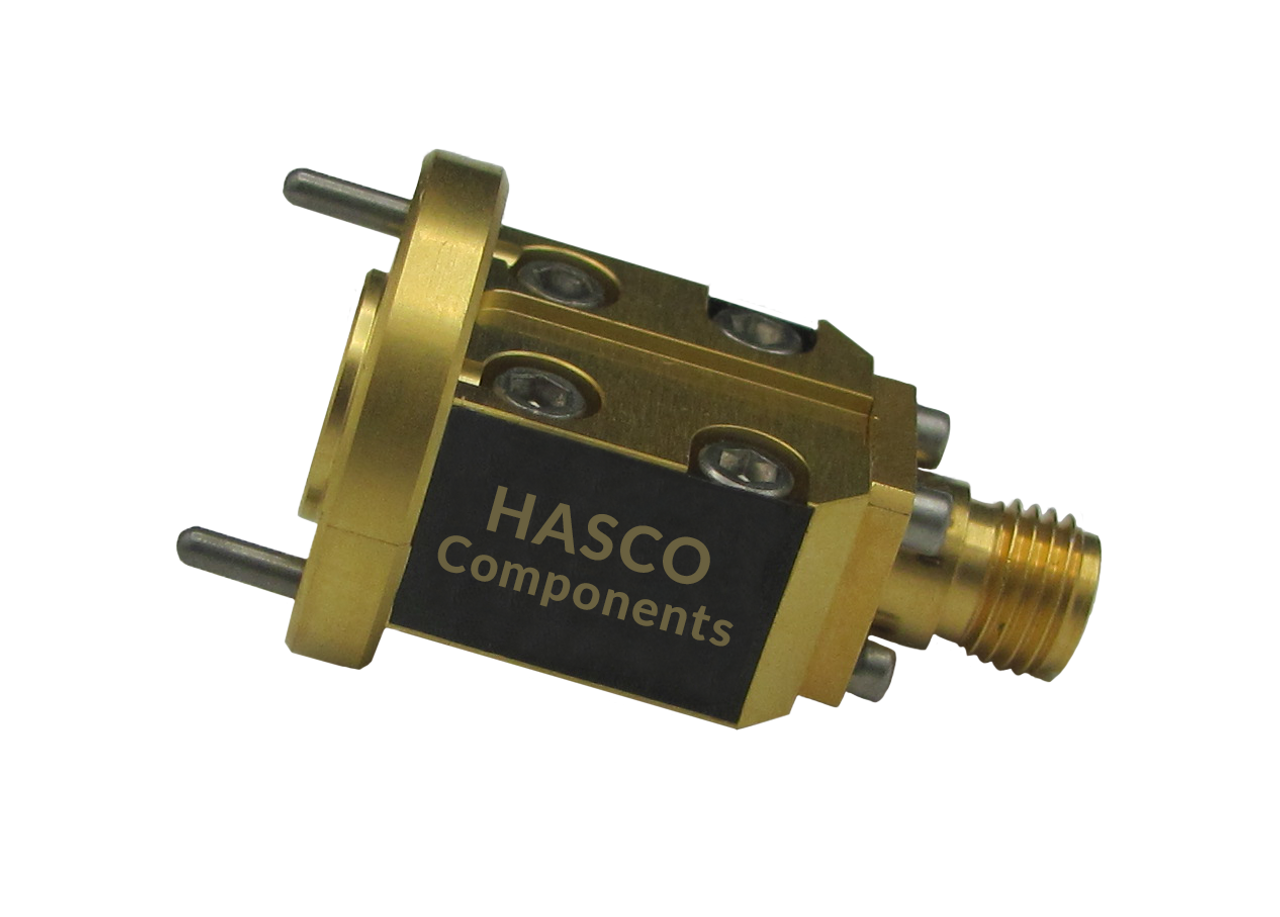

WR-19 SMA Female Waveguide Detector - 40 to 60 GHz

P/N: HWPSD19-4060-S2

Brand: HASCO Components

The HASCO HWPSD19-4060-S2 is an SMA Female U-Band waveguide detector from HASCO. This waveguide detector will operate from 40 GHz to 60 GHz. This detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm. Waveguide detectors offered by HASCO are square root small signal detectors.

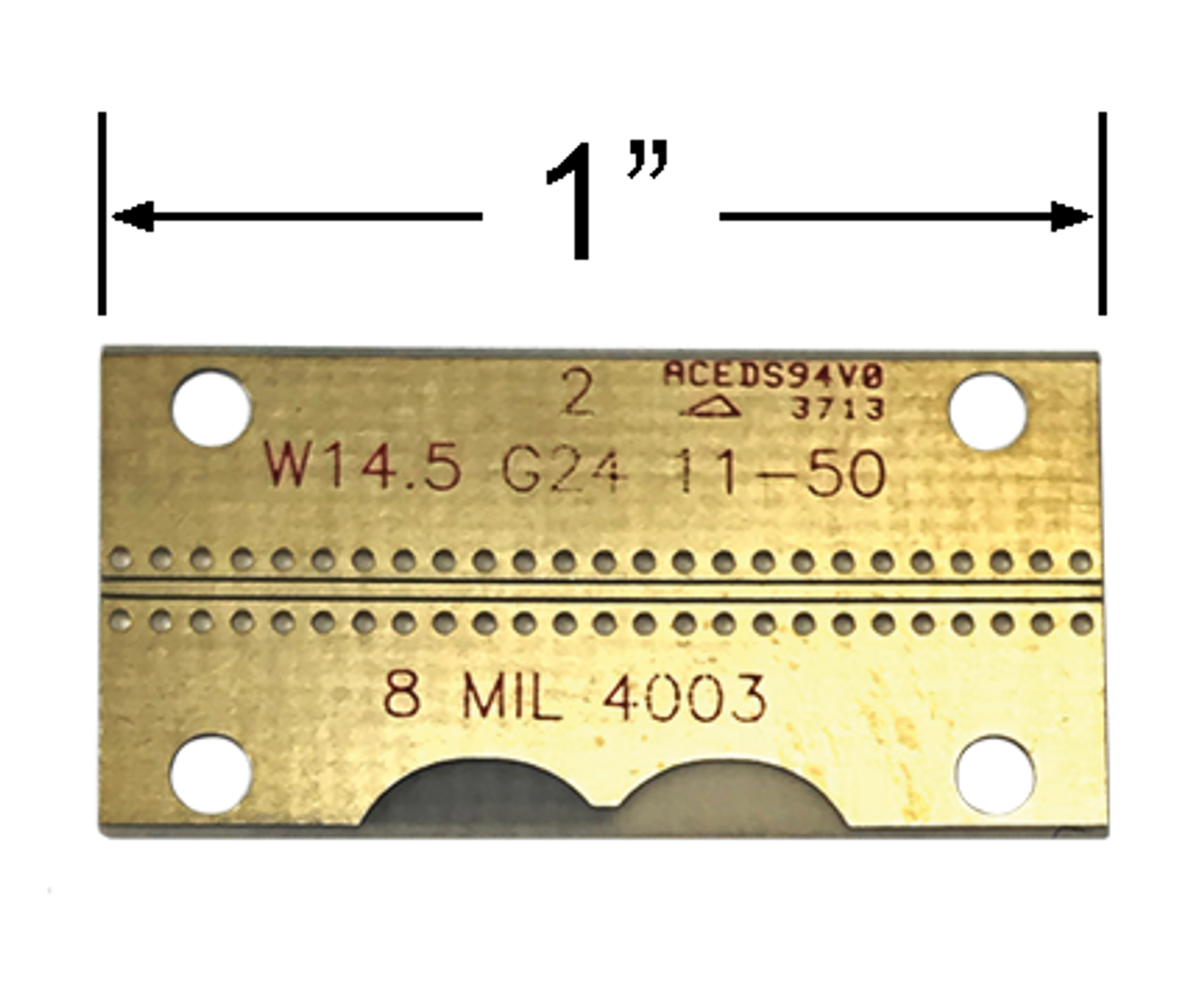

RO4003 End Launch GCPWG Test Board, 0.008" - Up to 50 GHz

P/N: B4003-8C-50

Brand: Southwest Microwave

The B4003-8C-50 is a .008" Thick RO4003, GCPWG (Grounded Coplanar Waveguide) Test Board manufactured by Southwest Microwave.

HASCO's Quality Standard

When ordering from HASCO, customers can expect several significant benefits. HASCO is renowned for its commitment to producing high-quality products. Our components are carefully crafted using premium materials and advanced manufacturing processes, guaranteeing long-lasting performance and durability.

HASCO's exceptional customer service and technical support add to the overall value. Expert guidance is readily available to assist customers in choosing the right components for their applications, while prompt and reliable delivery ensures customers receive their orders on time.

• Let us know how we can assist you •
