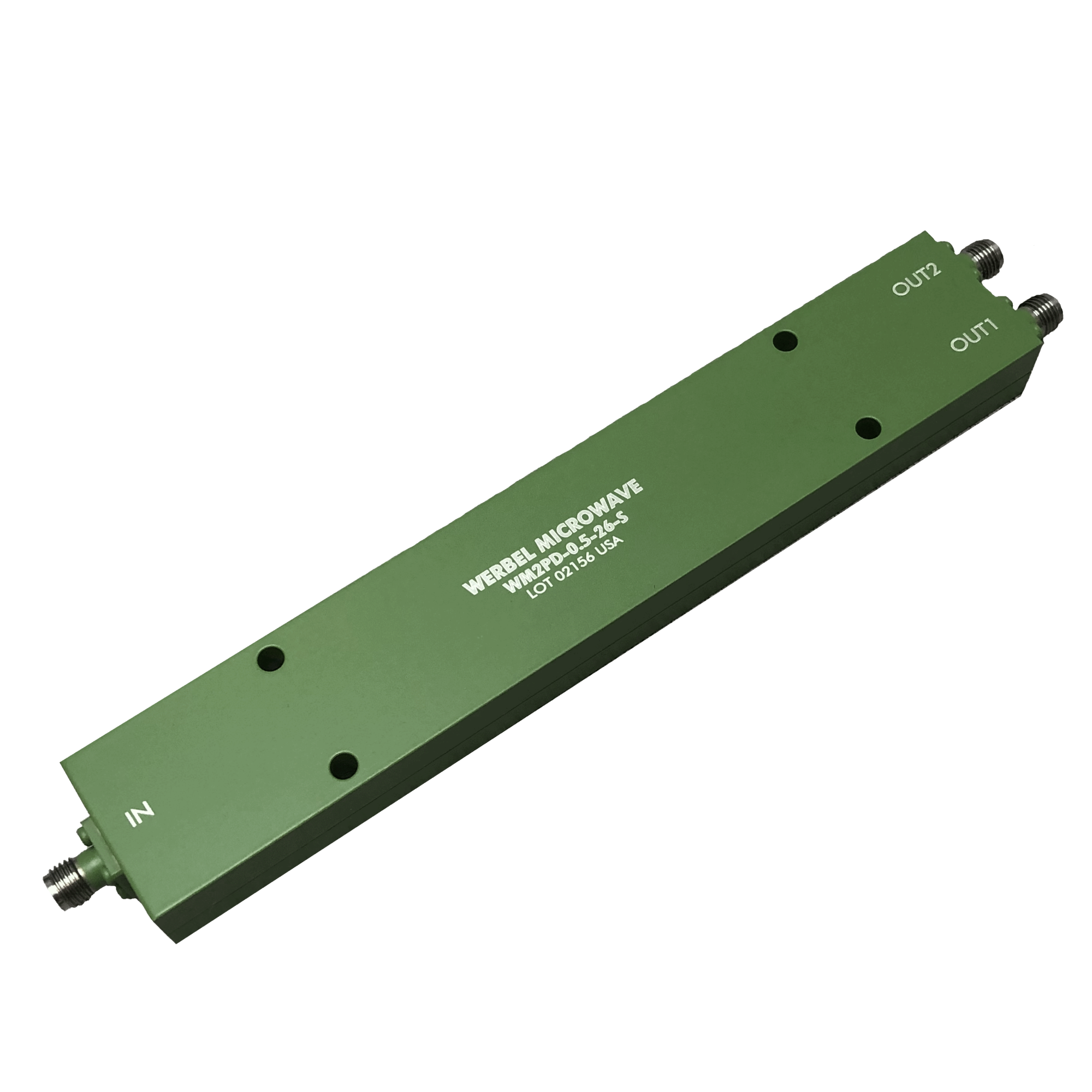

2-Way Power Divider with SMA Female Connectors - 0.5 to 26.5 GHz

P/N: WM2PD-0.5-26-S

Brand: Werbel Microwave

The WM2PD-0.5-26-S is an SMA female 2-way Power Divider covering the continuous bandwidth of 0.5 GHz to 26.5 GHz by Werbel Microwave. The product features low insertion loss, high isolation and excellent VSWR performance. Tight phase matching and amplitude balance between outputs. Typical insertion loss of 1.2 dB. Typical isolation of 18 dB. Return loss of 16 dB typical. Amplitude balance of 0.24 dB typical. Phase balance of 2.6 degrees typical. This device is RoHS compliant.

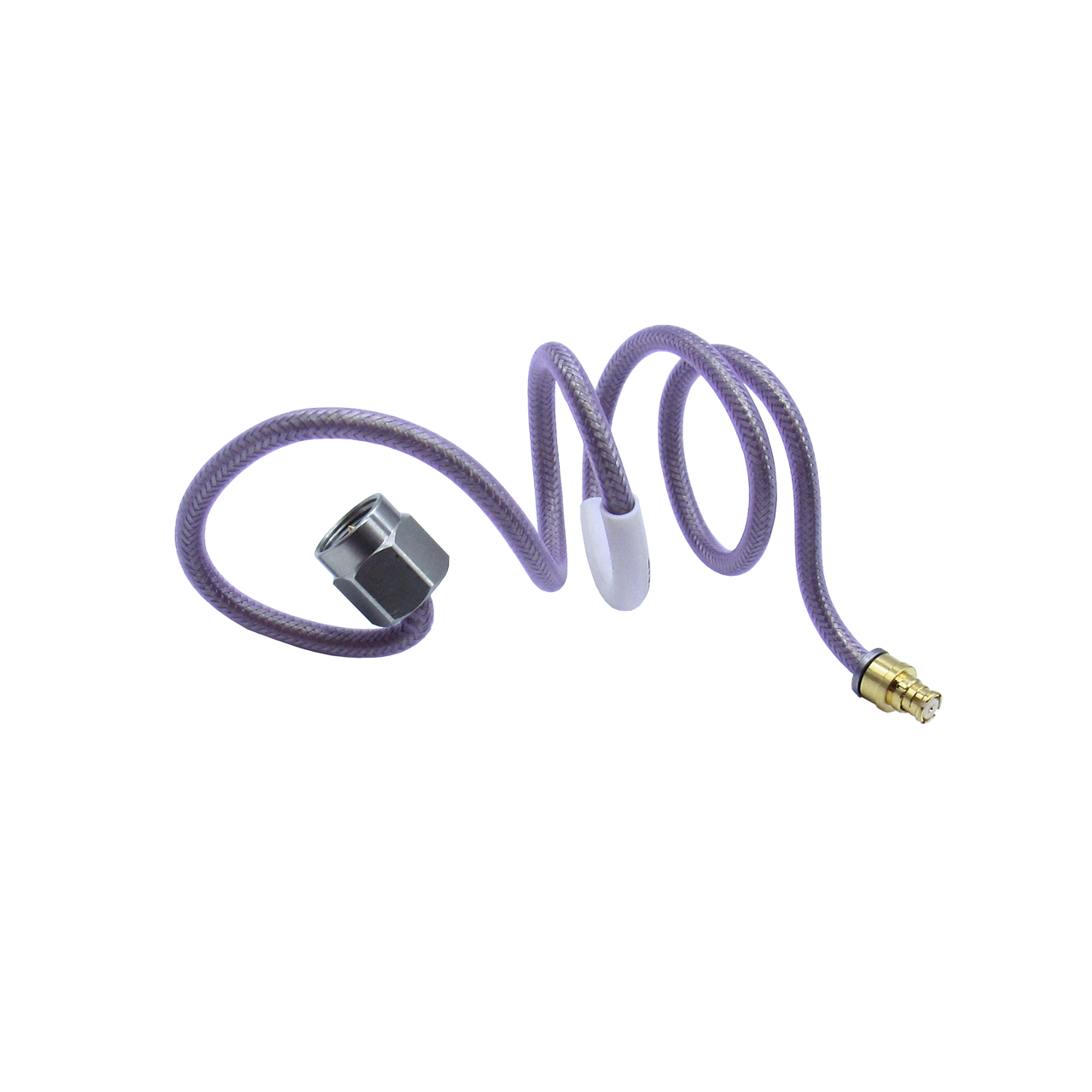

Littlebend HLB098 Ultra Flexible RF Cable with SMA Male to SMP Female Connectors - 20 inch

P/N: HLB098-S1-SMPJ-20

Brand: Littlebend

The HLB098 Littlebend Ultra Flexible RF Cable is designed for demanding microwave interconnect requirements. They are phase and amplitude stable. This cable is well suited for dense microwave packaging with a 0.20" minimum bend radius in an 0.098” cable with stainless steel braid. HLB098 Littlebend 26.5 GHz flexible cables are terminated with high performance SMA and SMP straight connectors. Also available in 2.4mm, 2.92mm, and SMPM connectors. Additional configurations available by special order.

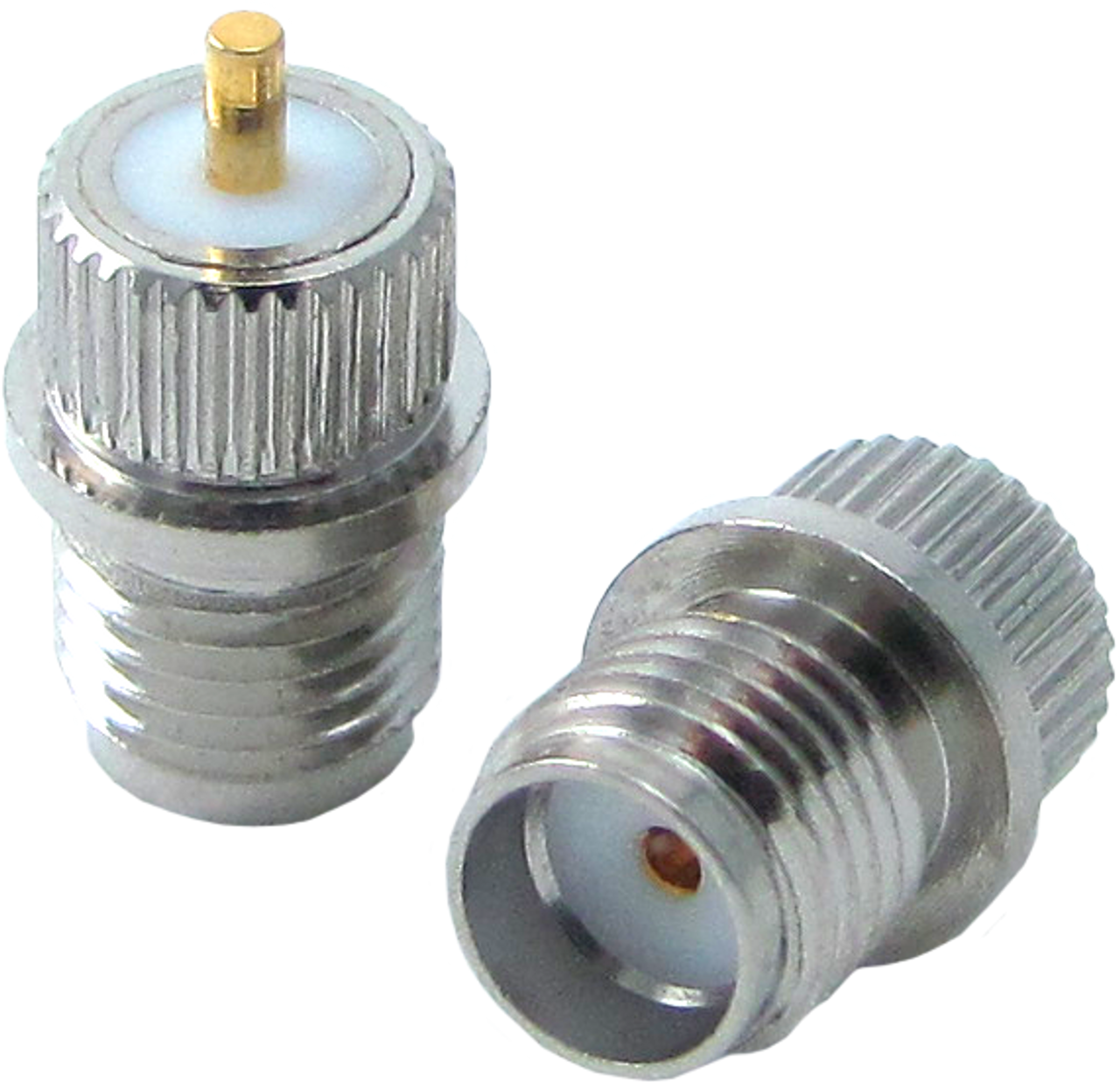

SMA Female Press Mount Connector

P/N: HA-SMA-JP-001A

Brand: HASCO Components

FIRESALE Item

The

HA-SMA-JP-001A is an SMA Female Press Mount Connector.

Our Firesale components are high performance components that either may be overstocked or discontinued. We extend the same level of support and guarantee the quality of these units, as with our standard stock items.

Check out our other FIRESALE parts here!

HASCO RF MARKETING PARTNER

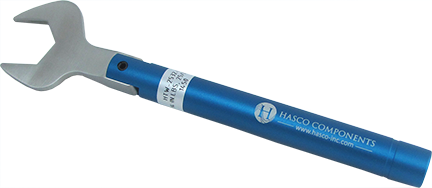

Type N Torque Wrench - Break Over Type with 25/32 in Hex Bit

P/N: HTW-2532-14

Brand: HASCO Components

The H

HTW-2532-14 is a Type N Torque Wrench - Break Over Type with 25/32 in Hex Bit. Preset torque wrenches are used to properly mate RF Hex Connectors with proper force to ensure a good mate and prevent damage to the center conductors or cause thread stripping.

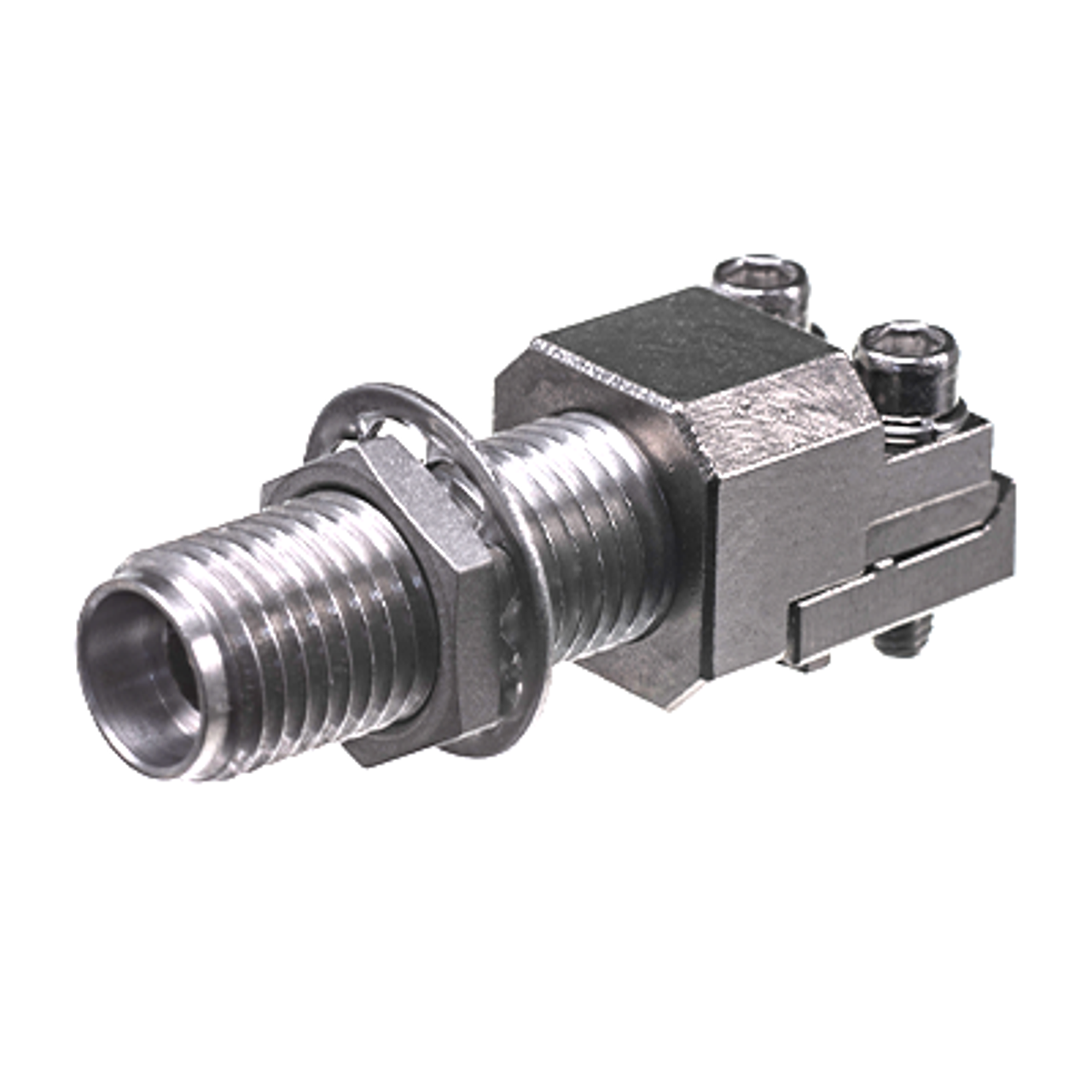

2.92mm Female End Launch Connector - Narrow Block .350, Extended Length

P/N: 1092-01A-11

Brand: Southwest Microwave

The 1092-01A-11 is an End Launch Connector manufactured by Southwest Microwave. The 1092-01A-11 is a 2.92mm Female coax connector with transition to PCB that operates up to 40 GHz. End Launch Connectors help reduce losses caused by the transition from PCB to Coax Connector and maintain a Low VSWR and RF Leakage. This End Launch is a Low Profile, .350 Wide Narrow Block design with Extended Connector Length available for Microstrip or Coplanar printed circuit boards.
