290-04G - Hermetic Seal

290-04G - Hermetic Seal

290-04G is a hermetic glass seal to manufactured by Southwest Microwave. This hermetic seal has a 0.015" Pin Diameter, 0.098" Body Diameter, 0.050" Connector Pin Length, 0.0625" Outer Ring Length, and 0.314" Circuit Pin Length. All Southwest Microwave Hermetic Glass Seals are made of Kovar, Gold plating, and 7070 Glass. Southwest Microwave Cage Code: 66049

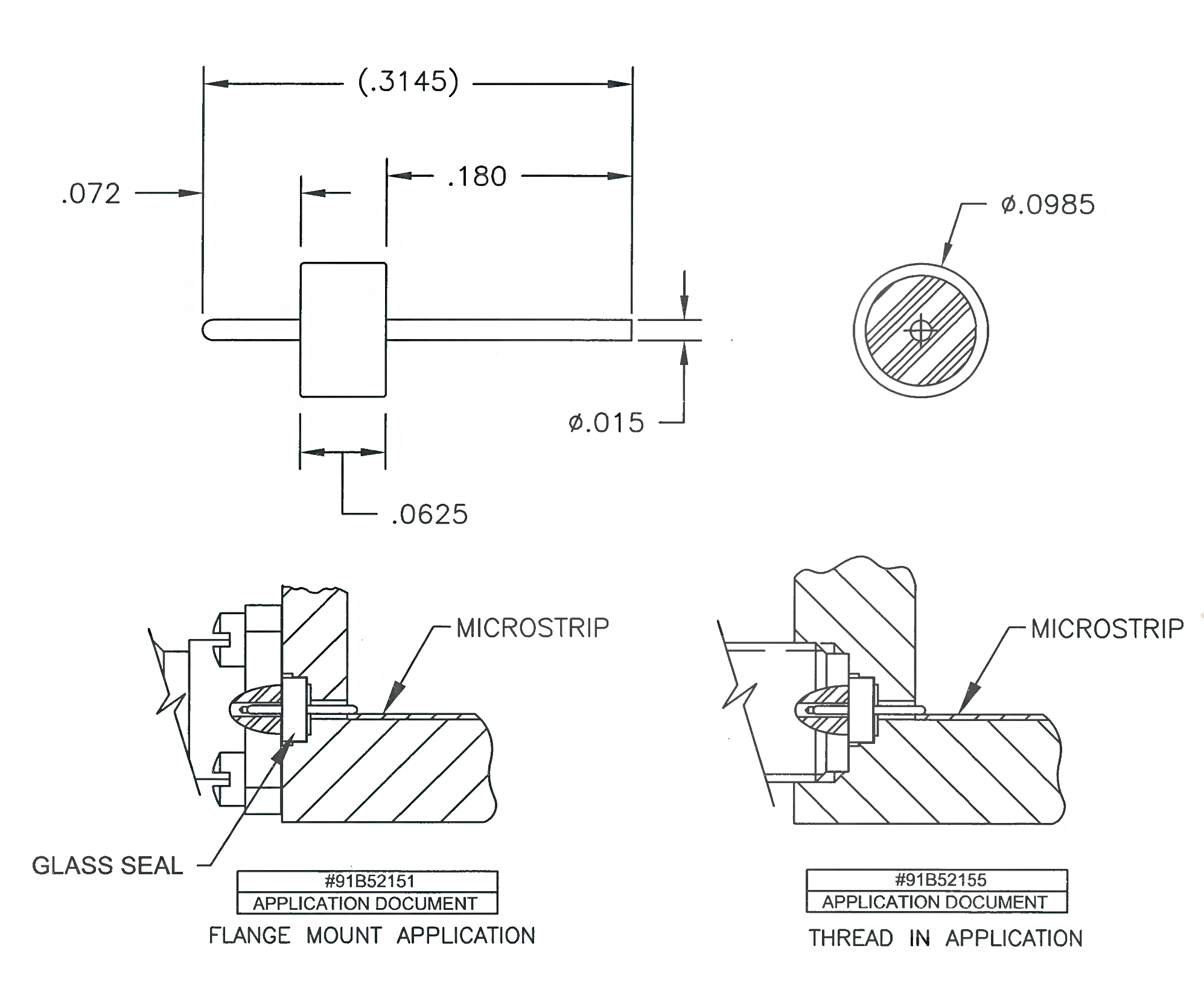

Measurements

Pin Diameter (d. Dia.): 0.015"

Body Diameter (D. Dia.): 0.098"

Connector Pin Length (A): 0.050"

Outer Ring Length (B): 0.0625"

Circuit Pin Length (C): 0.314"

 Mechanical Specifications
